Entertainment System Control Module: Specifications

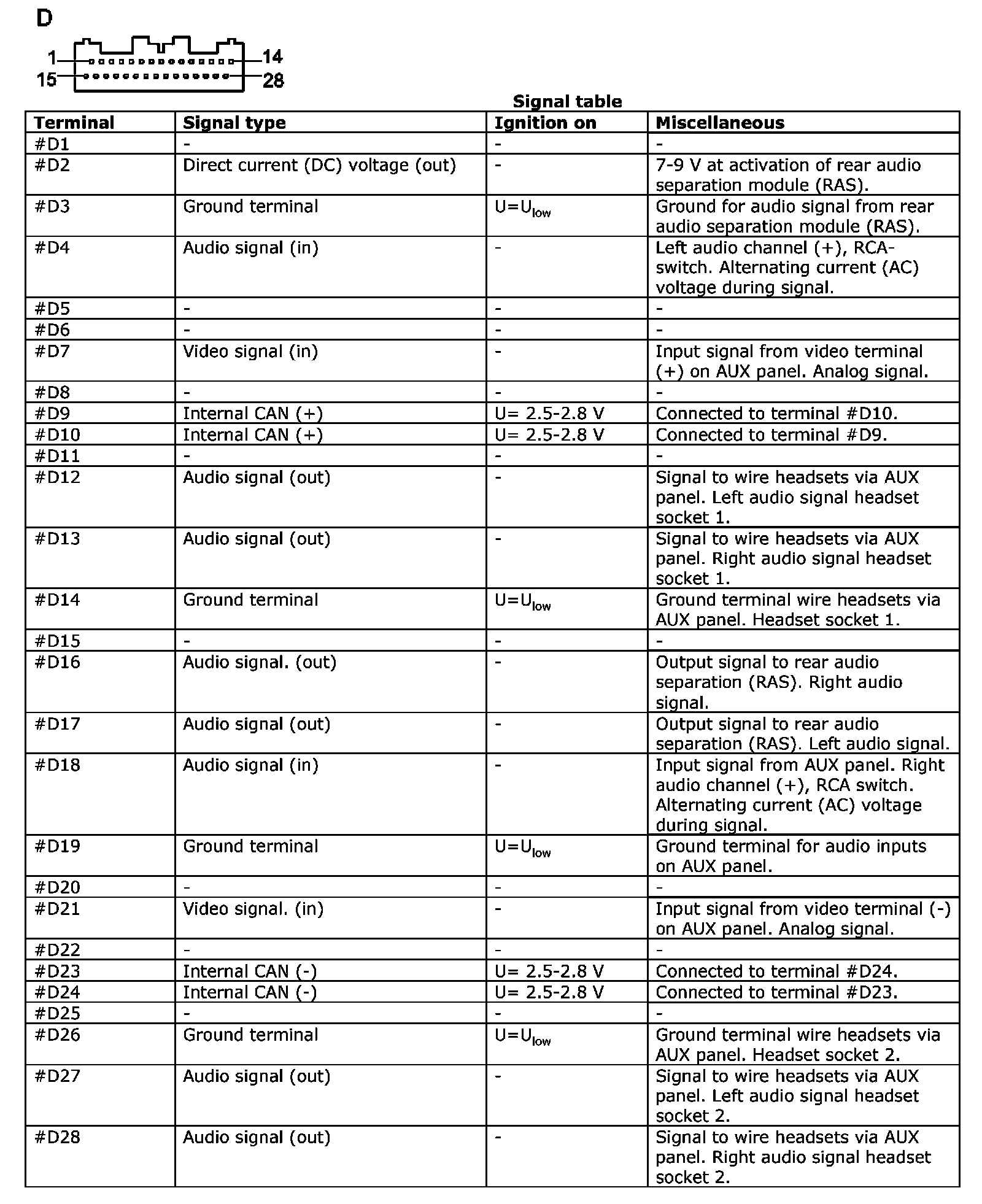

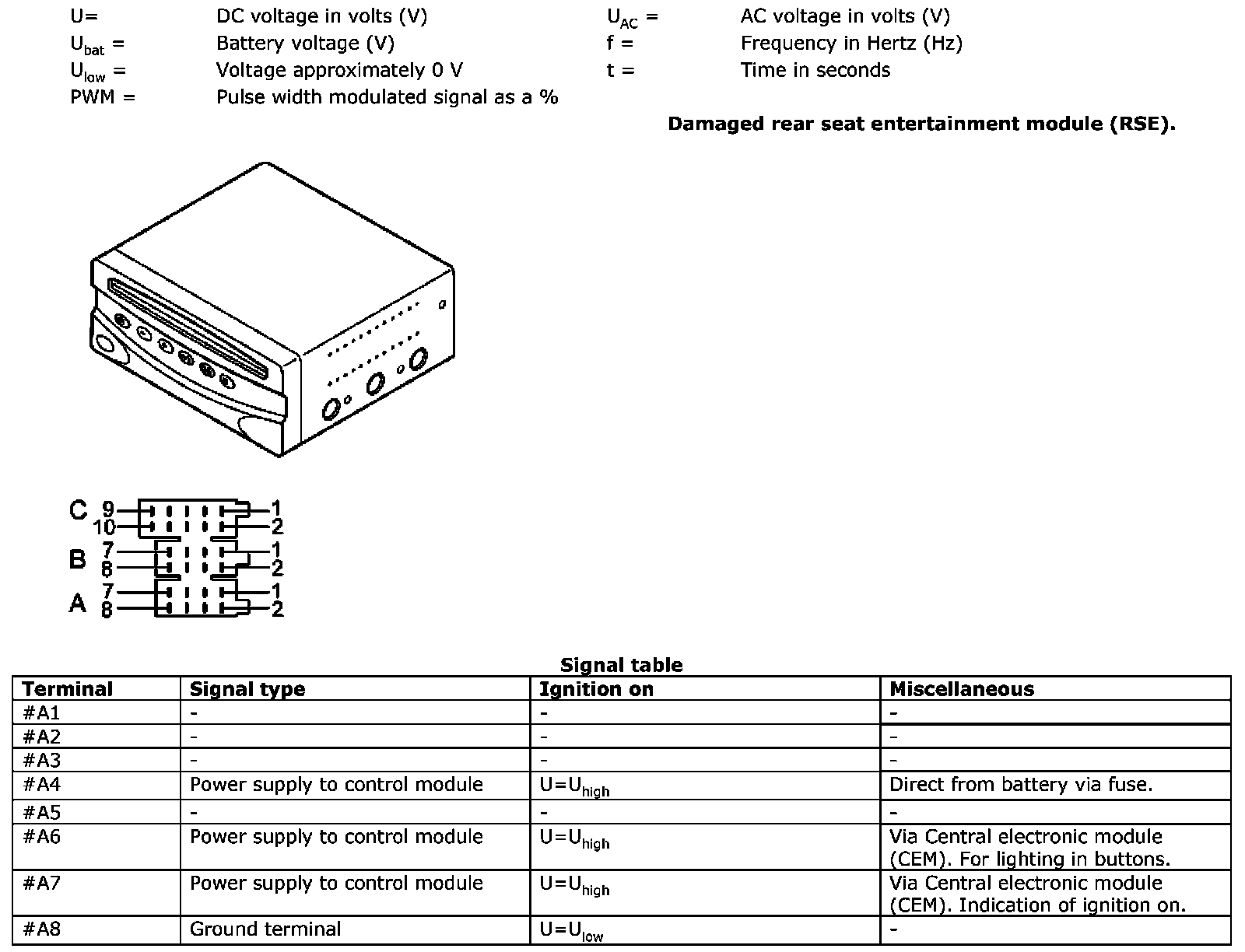

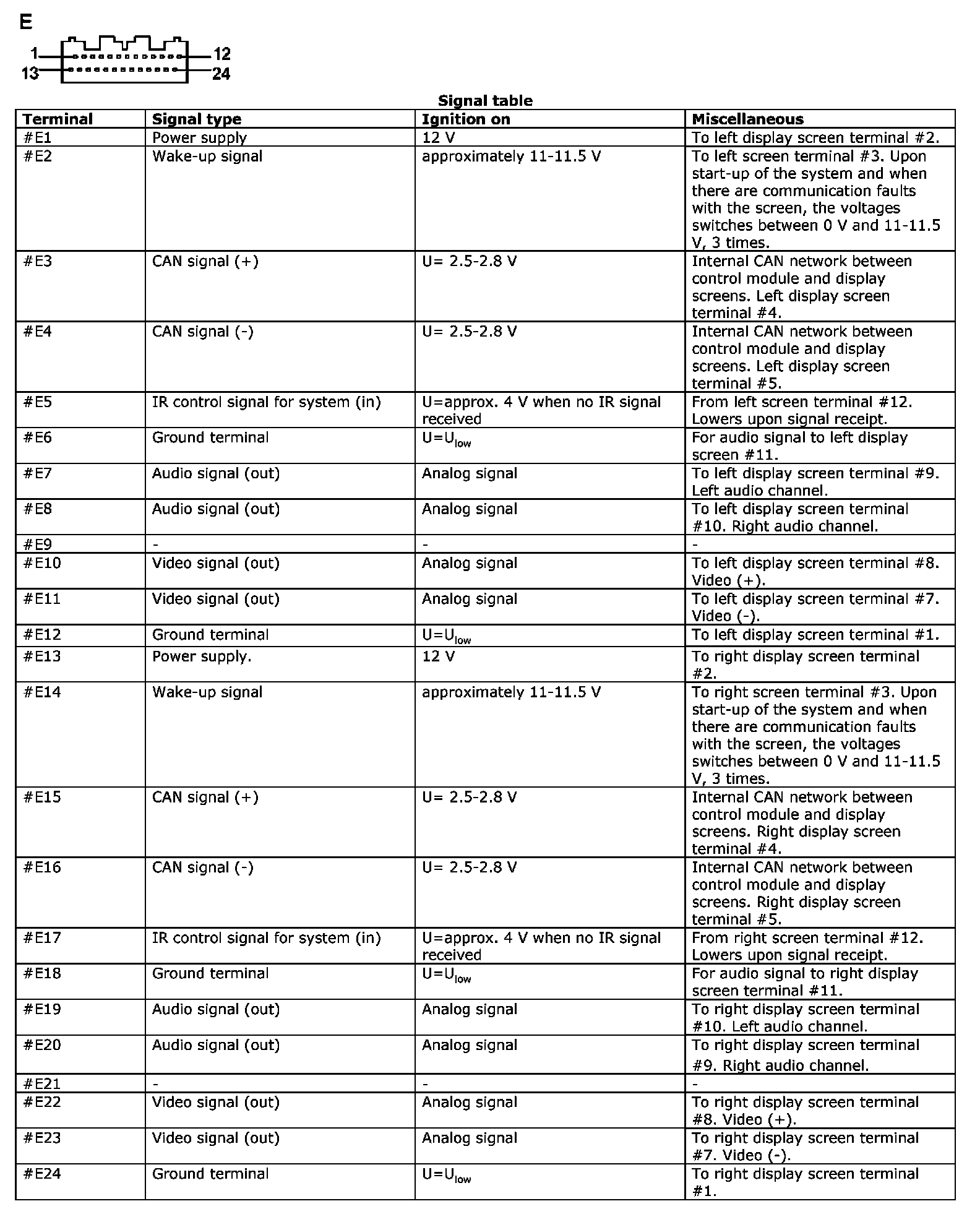

Signal specification, rear seat entertainment module (RSE), generation 4.1

Signal specification, rear seat entertainment module
