Fuel Tank Pressure Sensor: Service and Repair

Pressure sensor, fuel tank, replacement

Removal

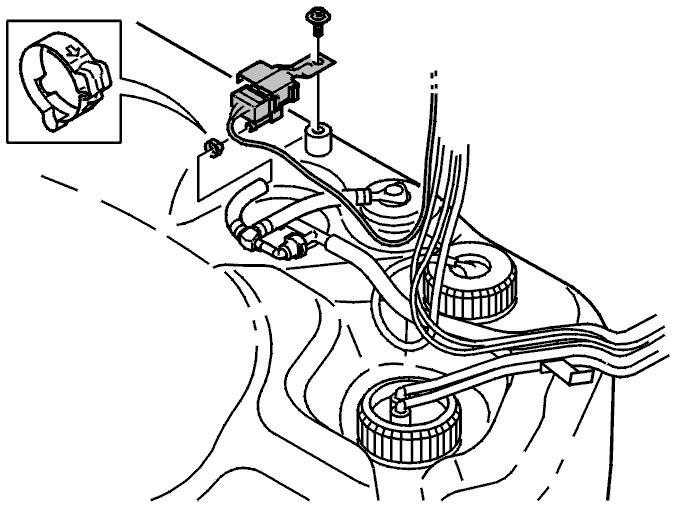

Removing the pressure sensor




Lower the tank to access the pressure sensor from above. See: Fuel tank, replacing Service and Repair

Remove
- the screw
- the connector
- the hose clamp and hose.

Installation

Installation
In reverse order
