Checking ignition spark: Notes

Fig 1: Identifying Ignition On Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off
• Do not disconnect ignition coil, let wiring remain in place.
• Install a new spark plug in the ignition coil, place it against the engine.
• Ignition on
  CAUTION:

  Never activate an ignition coil that is installed on the engine.

  Engine damage may be caused if there is a fuel in the cylinder.

  Check carefully that the coil that is removed is activated.

  Cylinder order is calculated from the camshaft gears.

  Activate the relevant ignition coil.

  Fig 2: Identifying VCT2000

  Courtesy of VOLVO CARS OF NORTH AMERICA.

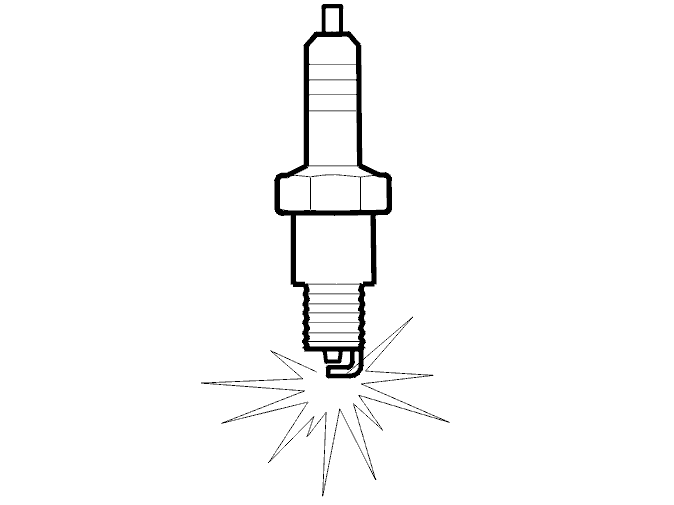

  Fig 3: Identifying Spark Plug

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Is there a spark?

• YES

  OKAY:  Troubleshooting has been completed.

• NO

  Refer to Replacing component
