Headlamp Control Module: Specifications

Component specifications

Position sensor 7/119, 7/121

General





Type
Resistance sensor.

characteristic
Resistance between #C1:1 and #C1:4 changes linearly depending on angle.

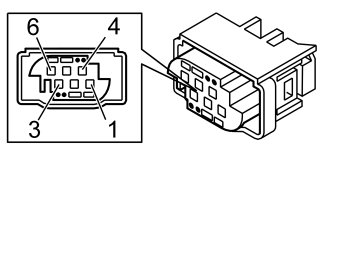

Terminal




Position sensor 7/119





Position sensor 7/121






Check
Prerequisites (unless otherwise specified):
- Sensor connected.
- Ignition switch position II.

Check 1
Position sensor:
Measure direct current between #C1:1 and #C1:4. The value should be:
Uapproximately1.5-3.8 V at ignition position II.
