Lighting Control Module (LCM)






Lighting Control Module (LCM)

Operation number: 35256-2

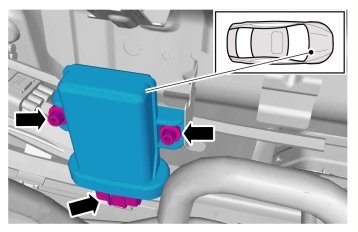

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the plenum cover. Refer to: Plenum chamber Service and Repair




Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Order and download appropriate software. Programming and Relearning
