Component Location, Headlamp Control Module (HCM)

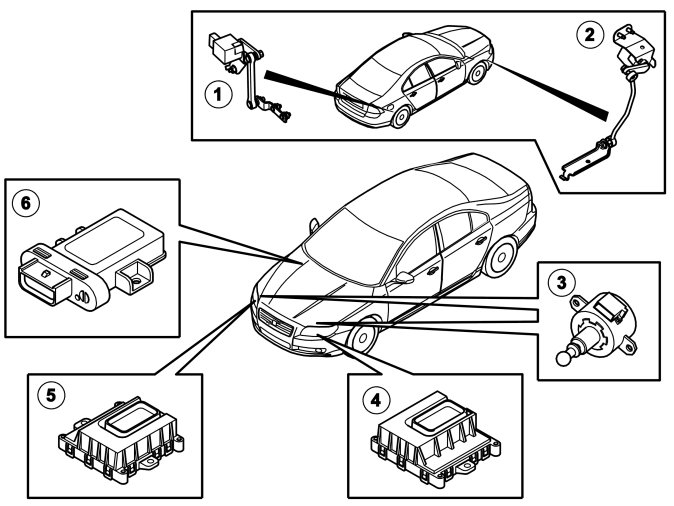

Location of components

Location Of Components:





Overview
1. Rear position sensor
2. Front position sensor
3. Motors for headlamp levelling (not active headlamps)
4. Left headlamp control unit (LHCU)
5. Right headlamp control unit (RHCU)
6. Headlamp Control Module (HCM)
