Oil Pressure Sensor: Service and Repair

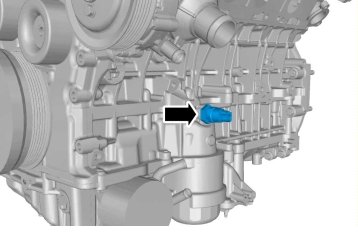

Pressure sensor, engine oil

Operation number: 38628-2






Removal

Note! Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame Refer to: Jacking points body Locations









Note! Use suitable paper to absorb any escaping fluid.

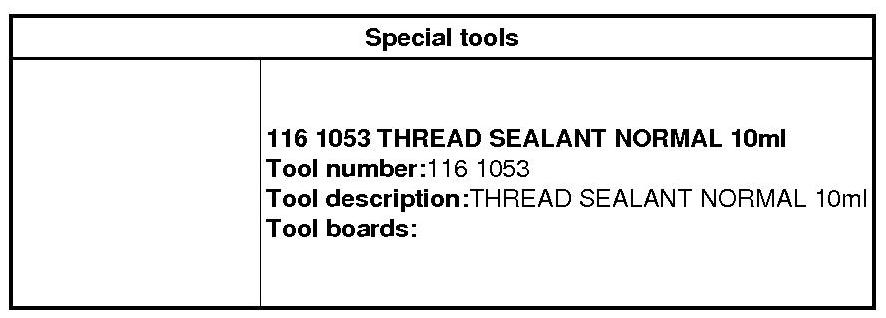

116 1053 THREAD SEALANT NORMAL 10ml 116 1053 Thread Sealant Normal 10ml
Torque: Oil pressure sensor, 14 Nm

Installation

To install, reverse the removal procedure.
