Coolant Temperature Sensor/Switch (For Computer): Service and Repair

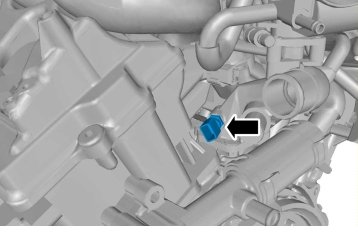

Engine coolant temperature sensor (ECT)

Operation number: 38630-2






Removal

Note! Removal steps in this procedure may contain installation details.

Drain cooling system. Service and Repair

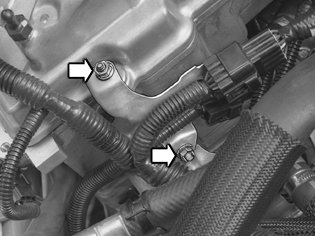

Torque: M6, 10 Nm








Torque: Temperature sensor coolant, 22 Nm

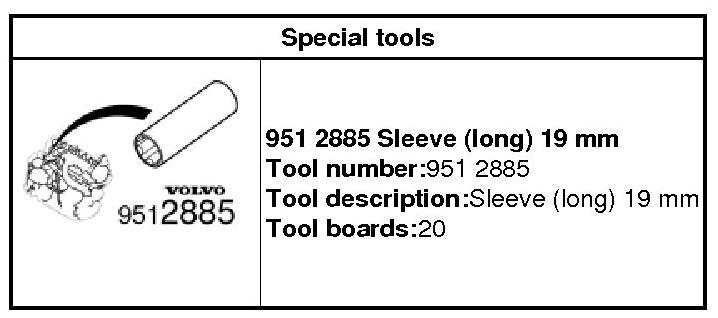

951 2885 Sleeve 951 2885 Sleeve

Installation

To install, reverse the removal procedure.
