Keyless Entry Module: Service and Repair

Keyless vehicle module (KVM)

Operation number: 36645-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Preparatory work

Ignition off




Ignition off.

Removing the left-hand front seat
Remove the left-hand front seat. See: Front seat Front Seat.

Removal

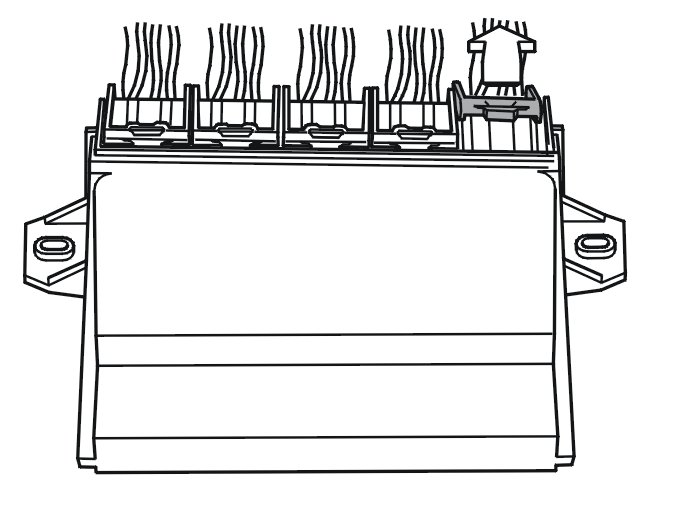

Removing the keyless vehicle module (KVM)





Remove:
- the 5 connectors
- the 2 x screws
- the control module.

Installation

Installing the keyless vehicle module (KVM)

Caution! The pins on the control module are fragile. Press the connectors in carefully.

Install:
- the control module
- the 2 x screws
- the 5 connectors.

Finishing

Installing the left-hand front seat
Install the left-hand front seat. See: Front seat Front Seat.

Ordering software
Order software for the control module.
