Clutch Switch: Service and Repair

Position sensor clutch pedal passenger compartment

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Removing soundproofing panels
Remove driver's side soundproofing panel. See: Instrument panel lower Instrument Panel Lower.

Removal

Removing pedal position sensor

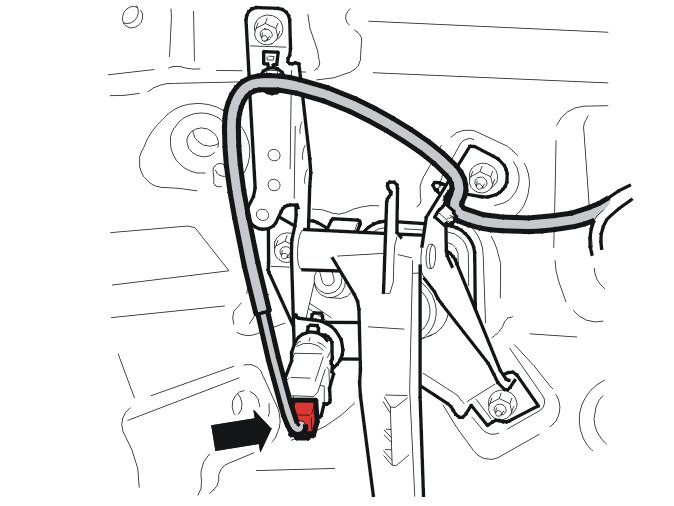

Remove the connector.

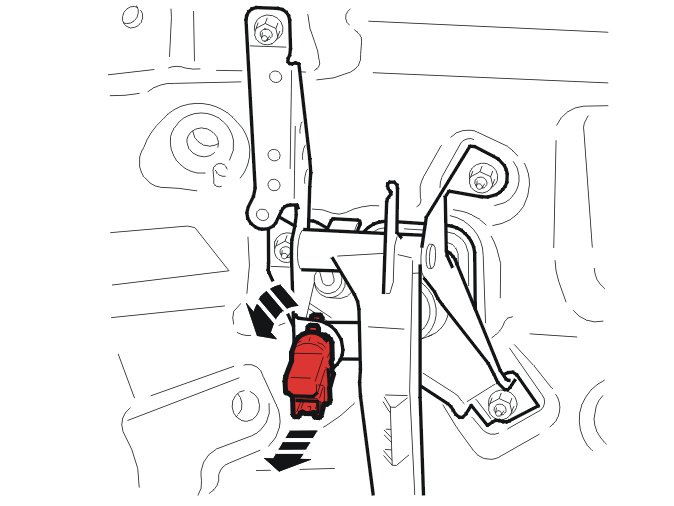

Turn the pedal position sensor counter-clockwise. Pull straight out.

Installation

Installing pedal position sensor

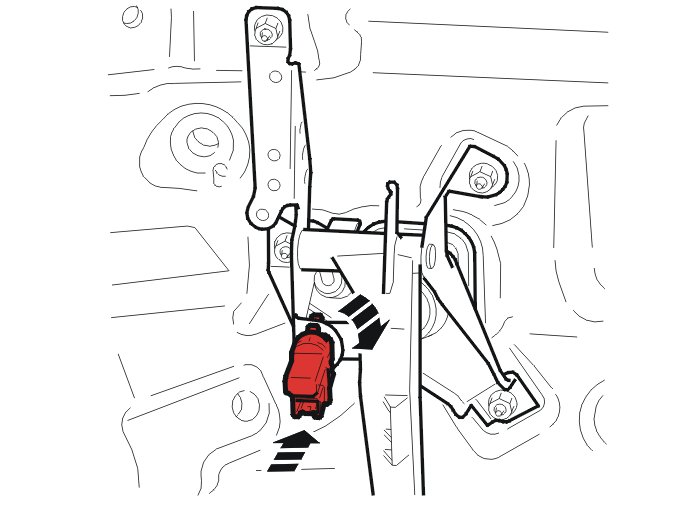

Install the pedal position sensor. Turn clockwise until it locks.




Connect the connector.

Finishing

Installing the soundproofing panel
Install driver's side soundproofing panel. See: Instrument panel lower Instrument Panel Lower.
