Solar Sensor: Service and Repair






Sun sensor

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

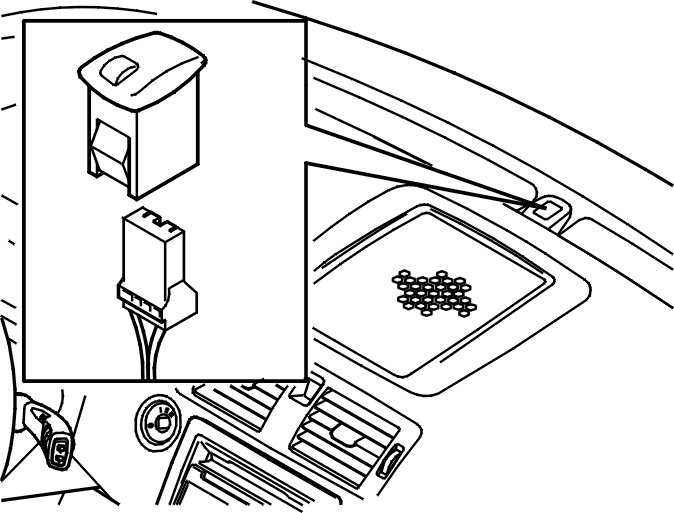

Removing the sun sensor/alarm LED





Remove:
- the sun sensor/alarm LED. Use a weather strip tool
- the connector, x 1.

Installation

Installing the sun sensor/alarm LED

Install:
- the connector, x 1
- the sun sensor/alarm LED.
