Component Location, Climate Control Module (CCM)

Location of components

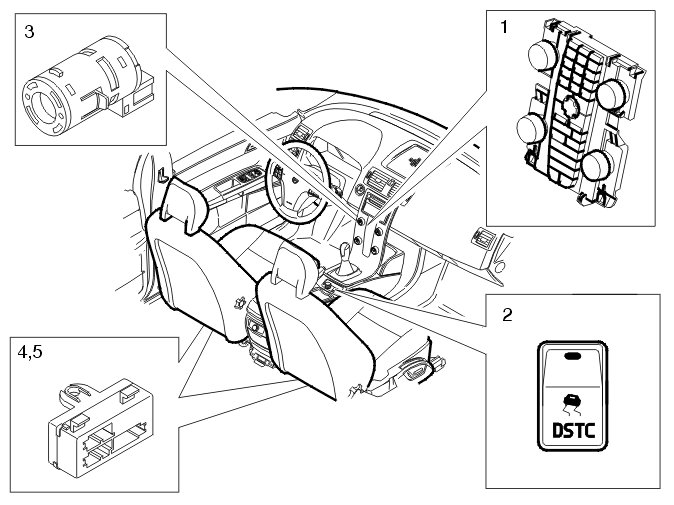

Location Of Components (Overview, Passenger Compartment):

Overview, passenger compartment
1. Climate control module (CCM)
2. Switch for STC/DSTC (not for C70 (06-))
3. Passenger compartment temperature sensor with blower fan
4. Seat heating module (SHM) left
5. Seat heating module (SHM) right.

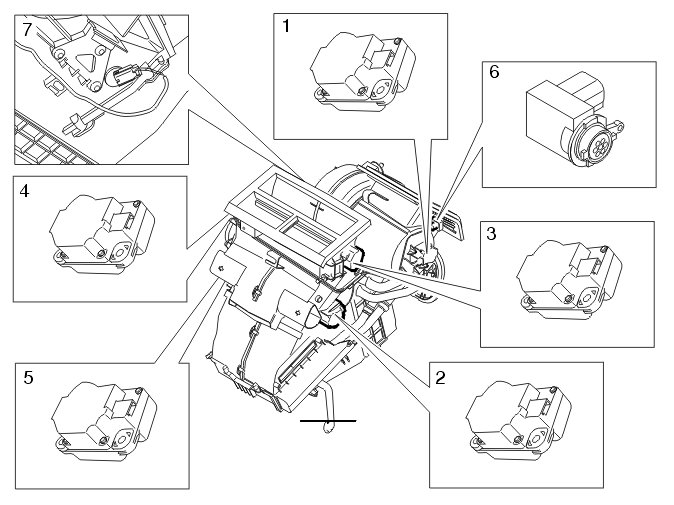

Location Of Components (Overview, Climate Control Unit):

Overview, climate control unit
1. Damper motor module (DMM) recirculation
2. Damper motor module (DMM) temperature right. Only applies to vehicles equipped with ECC
3. Damper motor module (DMM) defroster
4. Damper motor module (DMM) air distribution
5. Damper motor module (DMM) temperature left
6. Air quality sensor (AQS)
7. Evaporator temperature sensor.
