Rear Windshield Frame, Dimensions Chart

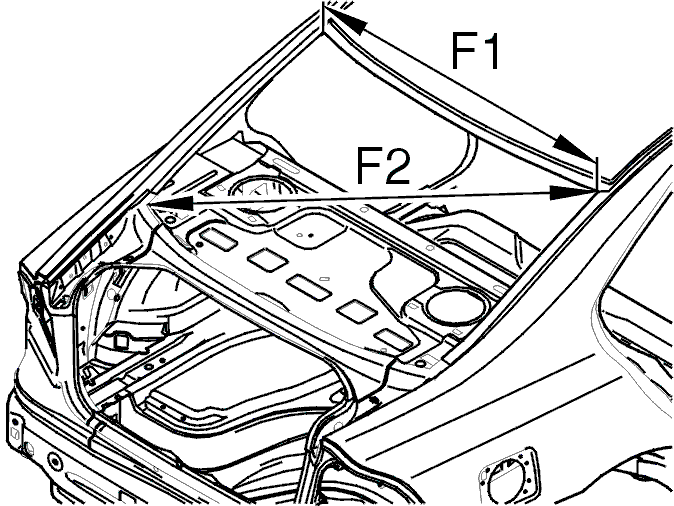

Fig 1: Rear Window Opening Dimensions And Measurement Locations (1 Of 3)
Courtesy of VOLVO CARS OF NORTH AMERICA.
F1 = 1096 mm
F2 = 1322 mm

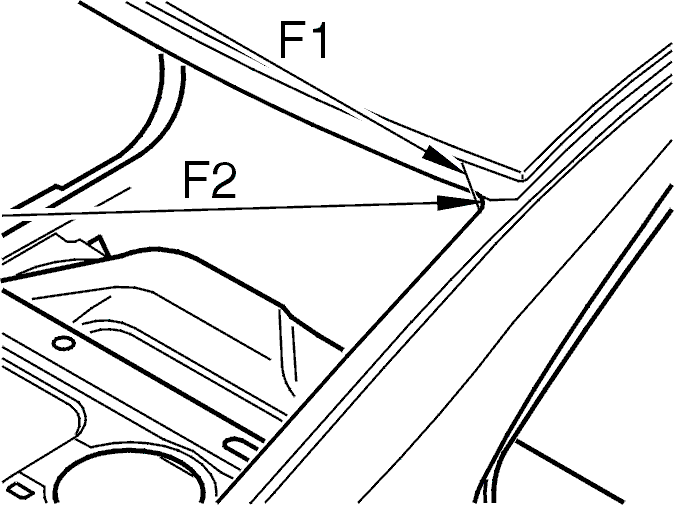

Fig 2: Rear Window Opening Dimensions And Measurement Locations (2 Of 3)
Courtesy of VOLVO CARS OF NORTH AMERICA.

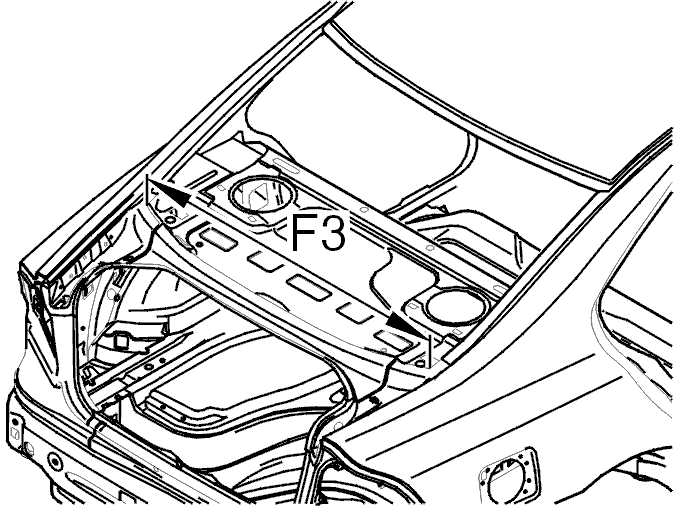

Fig 3: Rear Window Opening Dimensions And Measurement Locations (3 Of 3)
Courtesy of VOLVO CARS OF NORTH AMERICA.
F3 = 1122 mm
