Description & Operation: Introduction

WARNING: This page is about a different car, the 2004 Volvo V70, 2003 Volvo V70, 2002 Volvo V70, and 2001 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

The brake system can be divided into following main components:

Wheel braking system
Hydraulic braking system
Parking brake system
ABS, EBD and anti-spin systems

To identify location of brake system components, see Fig 1 .

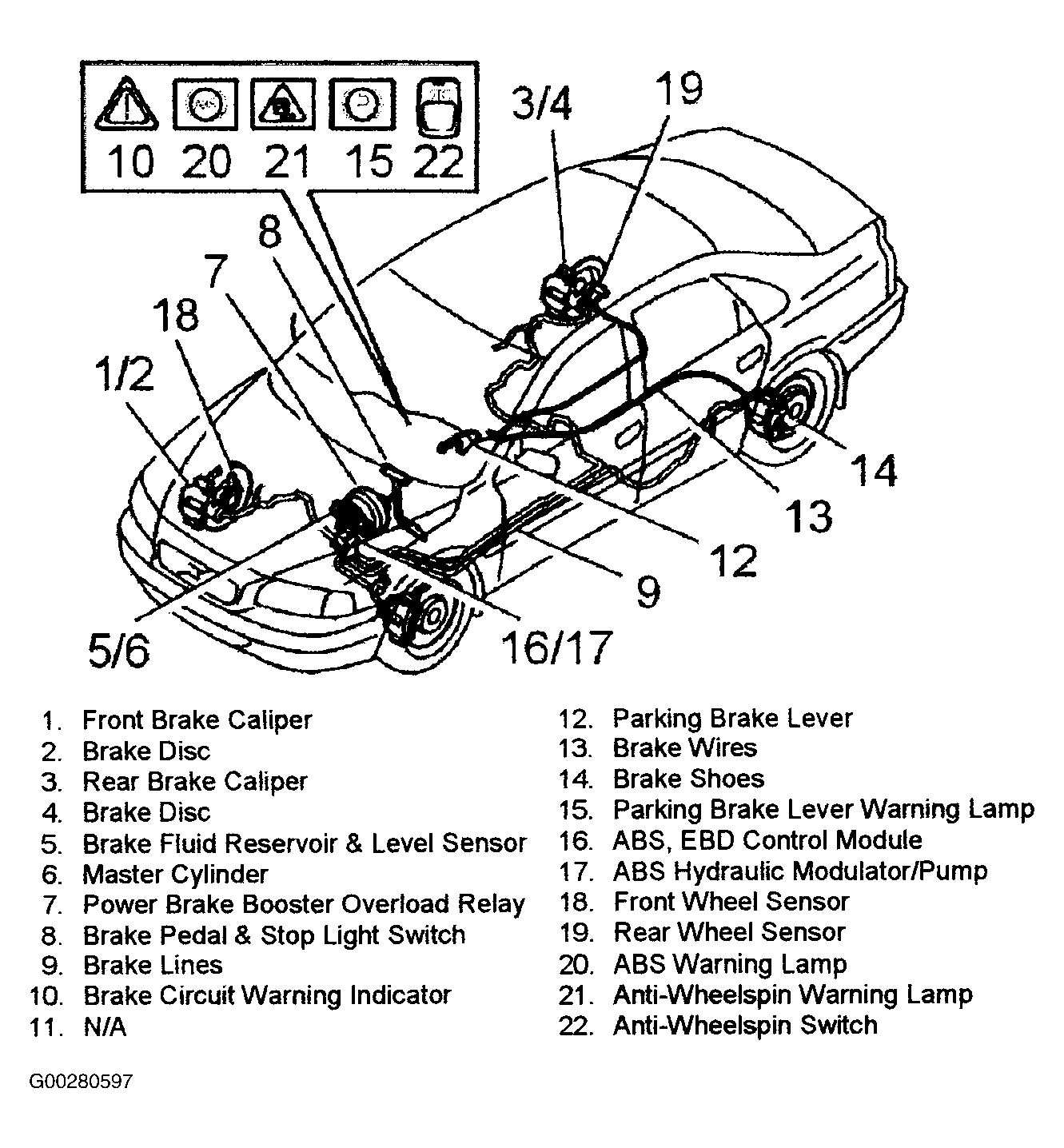

Fig 1: Identifying Brake System Components

Courtesy of VOLVO CARS OF NORTH AMERICA.
