Installing engine coolant fan (FC)
Carefully lower the fan shroud and align it with the holes at the sides of the radiator.
Tighten both mounting screws.
Connect engine cooling fan (FC) connectors.
Install charge air pipe over engine.

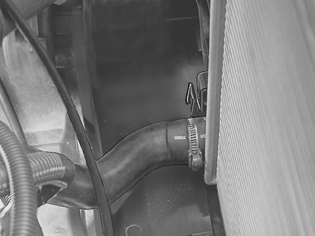

Press hose down from expansion tank into holder on fan shroud.
Secure wiring with tie straps as before.
Press canister purge (CP) valve into holder on fan shroud.
Turn down air cleaner (ACL) intake manifold and locate against sleeve connector above air conditioning aggregate.
Connect the negative battery cable. First read Battery, disconnecting .
Fill the AC system. See Draining/vacuum pumping/filling with coolant and leak-finding .
