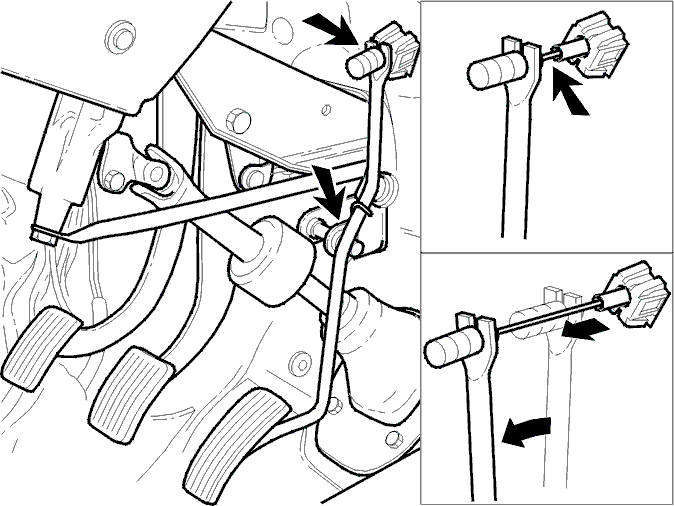

Replacing the throttle cable: Notes
- The throttle cable must never be bent at any point
- The mechanical cable must be completely in line with the cable sleeve when the throttle is completely closed
- Adjust the cable and sleeve if they are not correctly aligned by bending the cable sleeve mounting
- When the accelerator pedal (AP) is depressed and released the cable must run straight in and out of the cable sleeve
- If necessary, this can be adjusted by bending the accelerator pedal (AP) arm on the mechanical cable side.
When installing a new accelerator pedal (AP) the accelerator pedal (AP) pivot bearing must be lubricated with grease.
