Brakes
>>
Connector Brake Control Module (BCM), repair
>>
Replacing parking brake panel
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Replacing parking brake panel

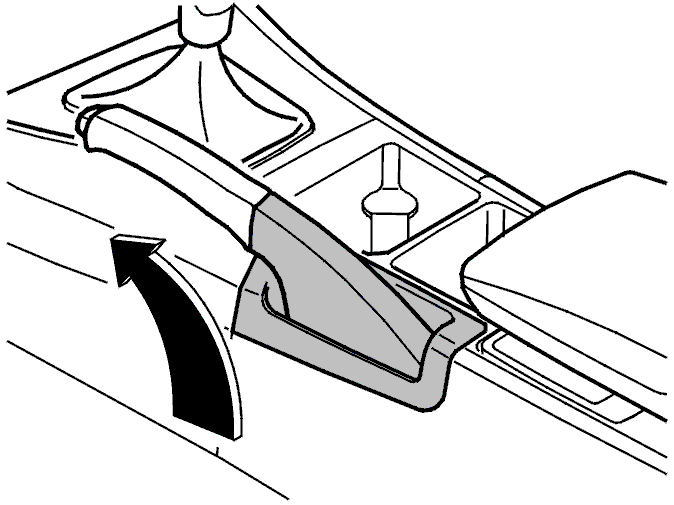

Fig 1: Identifying Boot Threaded Over Parking Brake Lever
Courtesy of VOLVO CARS OF NORTH AMERICA.
Lift the panel straight up
Thread the boot over the parking brake lever.
Install:
In reverse order.
