Ignition Switch: Service and Repair

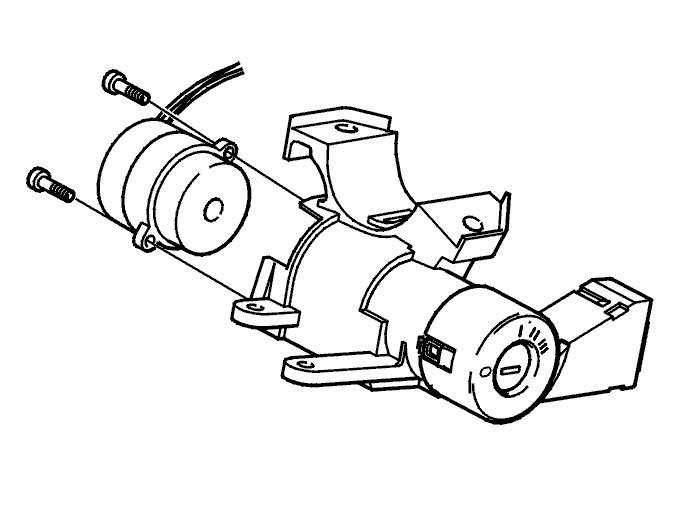

Starter switch, replacing

Removal

Start switch




- Remove the steering column covers
- Disconnect the connector
- Remove the 2 screws
- Remove the starter switch.

Installation

Start switch
- In reverse order
- Install the steering column covers.
