Control Module for Rear Audio Separation (RAS), Replacing

Control module for rear audio separation (RAS), replacing

Removal

Preparatory work
Fold down the left side panel in the cargo compartment.

Removing the M2D control module and bracket





Remove:
- the 3 mounting screws for the bracket
- the M2D control module and bracket.

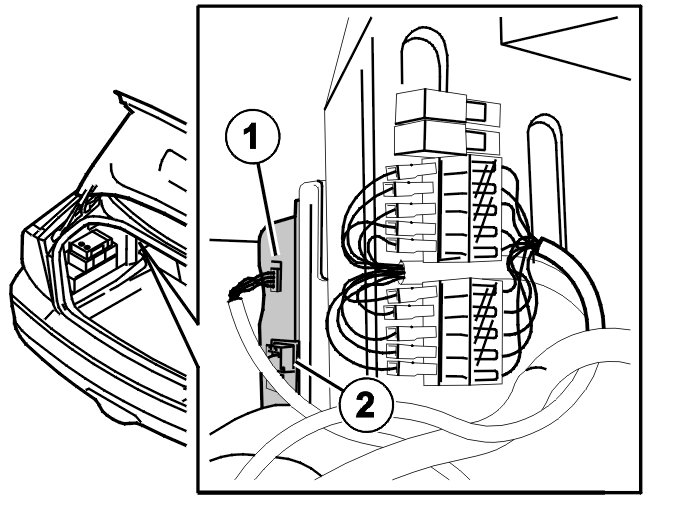

Removing the control module for rear audio separation (RAS) and the bracket




Disconnect the two connectors from the control box.
Remove the control module and the bracket.

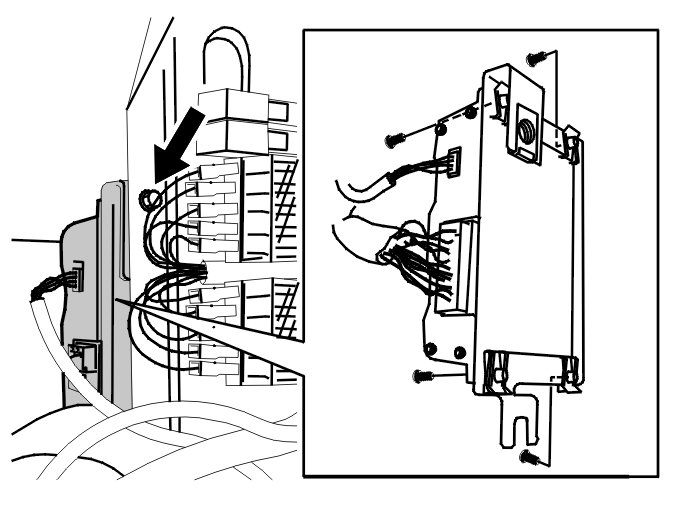

Removing the control module for rear audio separation





Remove:
- the 4 mounting screws for the control module
- the control module.

Installation

Installing the control module for rear audio separation (RAS)





Install:
- the control module
- the 4 mounting screws for the control module.

Installing the control module for rear audio separation (RAS) and the bracket




Install the control module and bracket.
Connect the two connectors to the control box.

Installing the M2D control module and bracket





Install:
- the M2D control module and bracket
- the 3 mounting screws for the bracket.

Finishing
Fold up the left side panel in the cargo compartment.
