Climate units

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Location of components

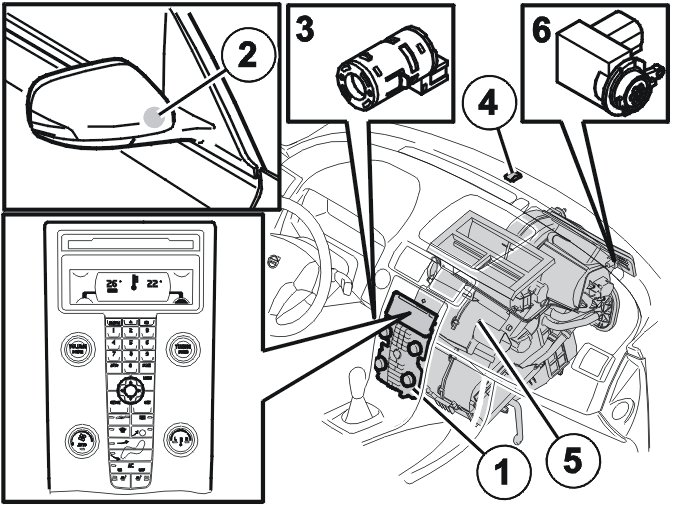

Locating the climate control system components in the passenger compartment / door mirror

Locating The Climate Control System Components In The Passenger Compartment / Door Mirror:

1. Climate control unit (ECC or MCC)
2. Outside temperature sensor (left-hand side)
3. Passenger compartment temperature sensor (ECC)
4. Sun sensor (ECC)
5. Climate control unit
6. Air quality sensor (AQS).
