Keyless Entry Module: Locations

Location of components

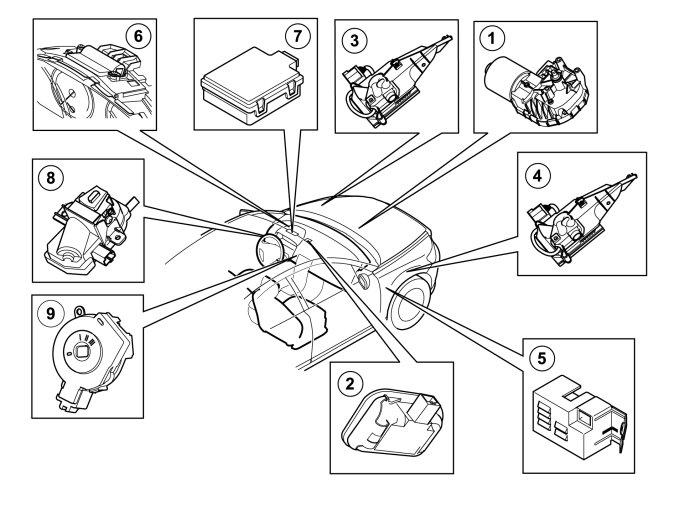

Location of Components (LIN Nodes):

LIN nodes
1. Wiper motor module (WMM)
2. Rain sensor module (RSM)
3. Gas discharge lamp module (GDL), left (does not apply to S40/V50, 2008-)
4. Gas discharge lamp module (GDL), right (does not apply to S40/V50, 2008-)
5. Siren control module (SCM)
6. Remote Receiver Module (RRX)
7. Remote Keyless Entry (RKE)
8. Steering column lock module (SCL)
9. Start control module (SCU)
