Component Tightening Torque





Summary Of Specific Components And Tightening Torques

NOTE: Bolts coated with locking fluid or sealant must be replaced with new when reinstalled.

Always use new bolts and nuts when angle tightening. Any exceptions to this rule will be indicated in the method.

Angle tightening in tight spaces, see Screwed joint, torque/angle tightening.

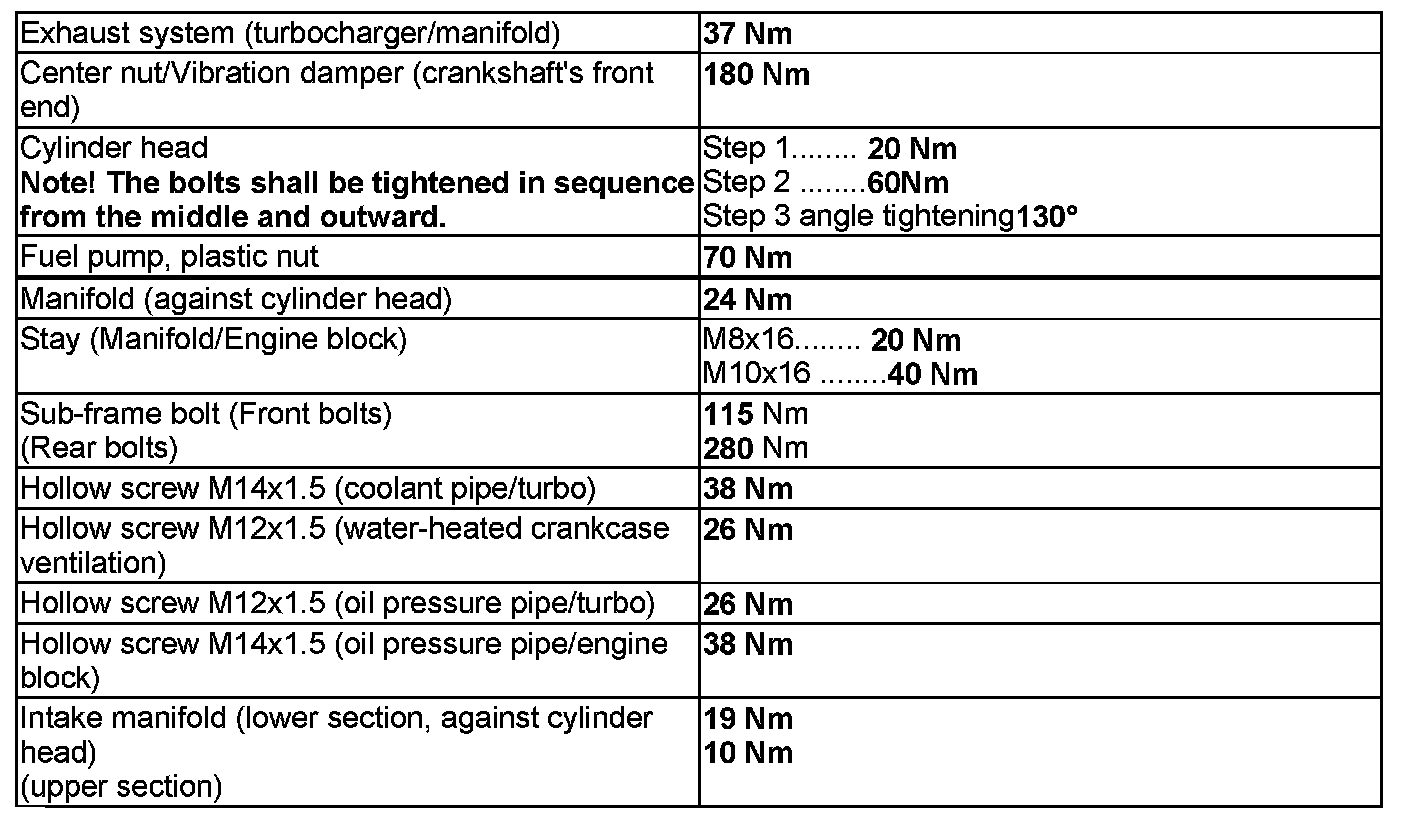

Part 1:

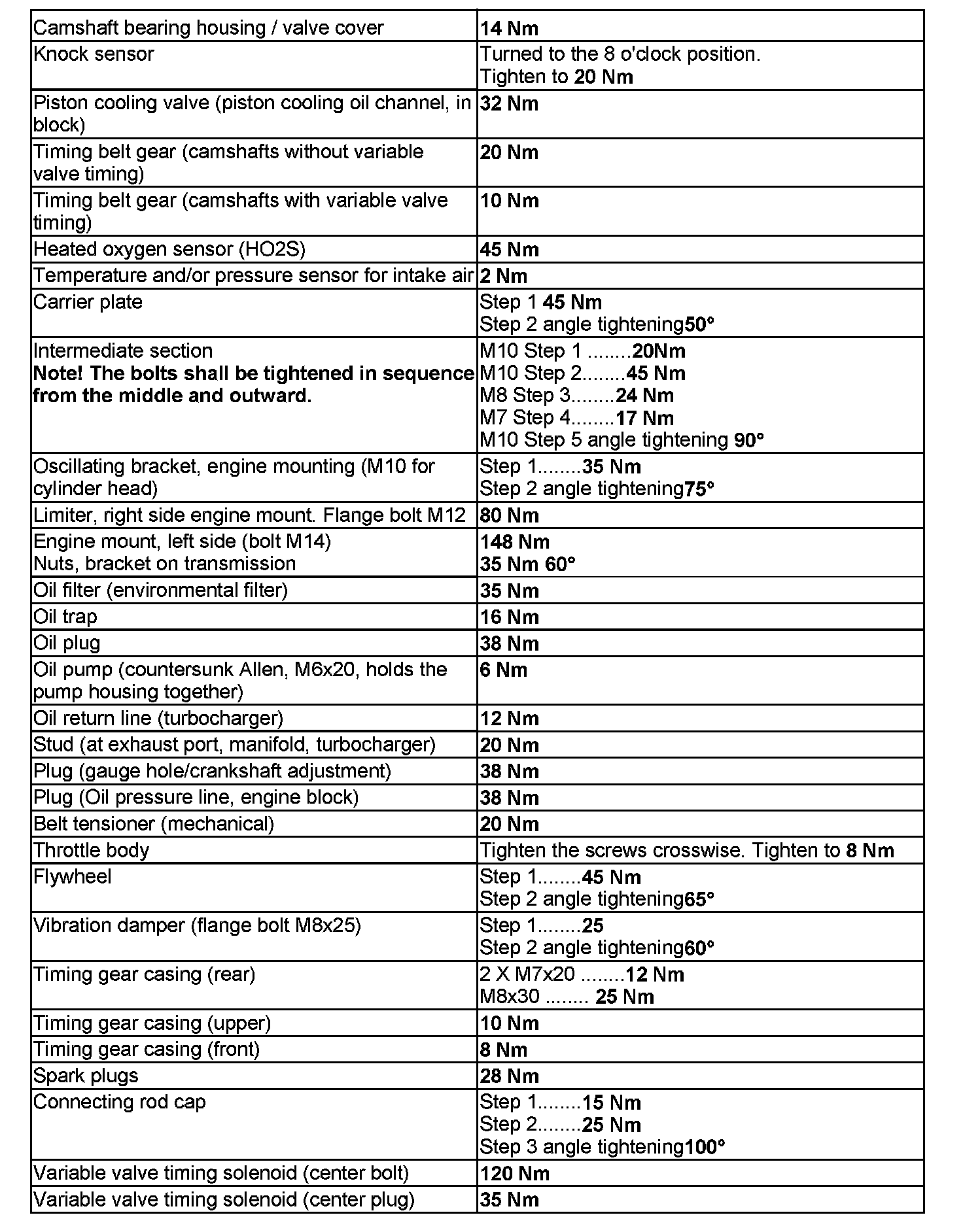

Part 2:
