Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold absolute pressure (MAP) sensor

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

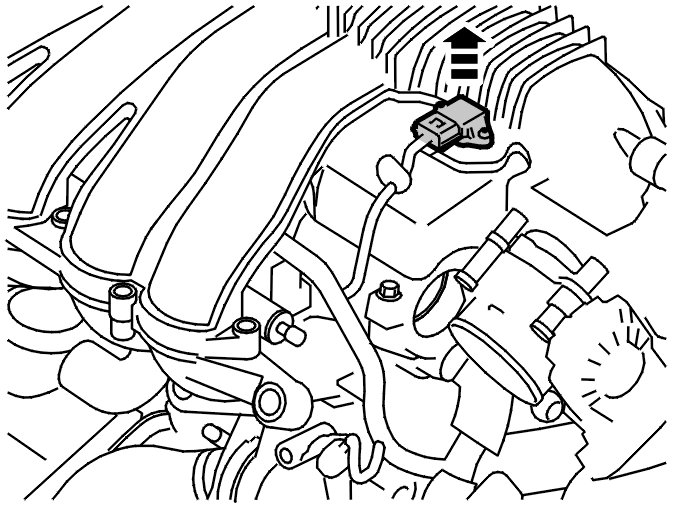

Removing the pressure sensor




Cut the tie strap for the pressure sensor cable harness. Disconnect the pressure sensor connector.

Remove:
- the screws for the sensor
- lift up the sensor.

Installation

Note! For tightening torques, see Specifications. Tightening Torque

Installing the pressure sensor

Install:
- the pressure sensor
- screws for the pressure sensor. Tighten. Connect the connector for the pressure sensor
- new tie strap for the pressure sensor wiring.
