Air Flow Meter/Sensor: Service and Repair

Mass air flow (MAF) sensor

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Removing the air cleaner (ACL) module
Remove the air cleaner (ACL) module. See: Air filter module Service and Repair.

Removal

Removing the mass air flow (MAF) sensor





Remove:

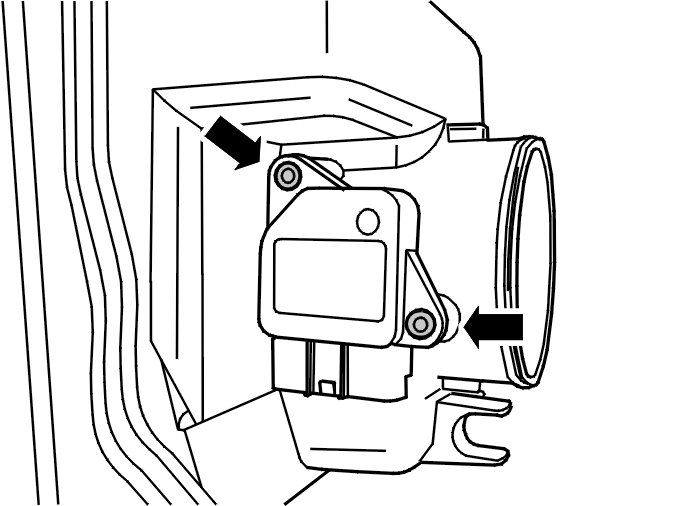

- the screws for the mass air flow (MAF) sensor
- the mass air flow (MAF) sensor. Pull straight out.

Installation

Note! For tightening torques, see Specifications. Tightening Torque

Installing the mass air flow (MAF) sensor

Install:
- the mass air flow (MAF) sensor
- the screws for the mass air flow (MAF) sensor.

Finishing

Installing the air cleaner (ACL) module
Install the air cleaner (ACL) module. See: Air filter module Service and Repair.

Checking the mass air flow (MAF) sensor
Start the engine and check the function.
