Transferring Components

Transfer:

• the control arms. See Fig 1. Use new screws and new nut. Tighten the front screws. Tighten to 65 Nm. Angle-tighten 90°. Use bevel protractor 951 2050. Tighten the rear screw. Tighten to 105 Nm, then angle-tighten another 90 degrees.
• the anti-roll bar. Tighten to 60 Nm
• the right-hand engine mounting. Tighten the screws. Tighten to 65 Nm. Angle-tighten 60°
• the exhaust mounting bracket. Tighten to 50 Nm
• the shock absorber Tighten to 50 Nm
• lower torque rod. Tighten to 65 Nm, then angle-tighten another 90 degrees.

Install new pipe / hose holders.

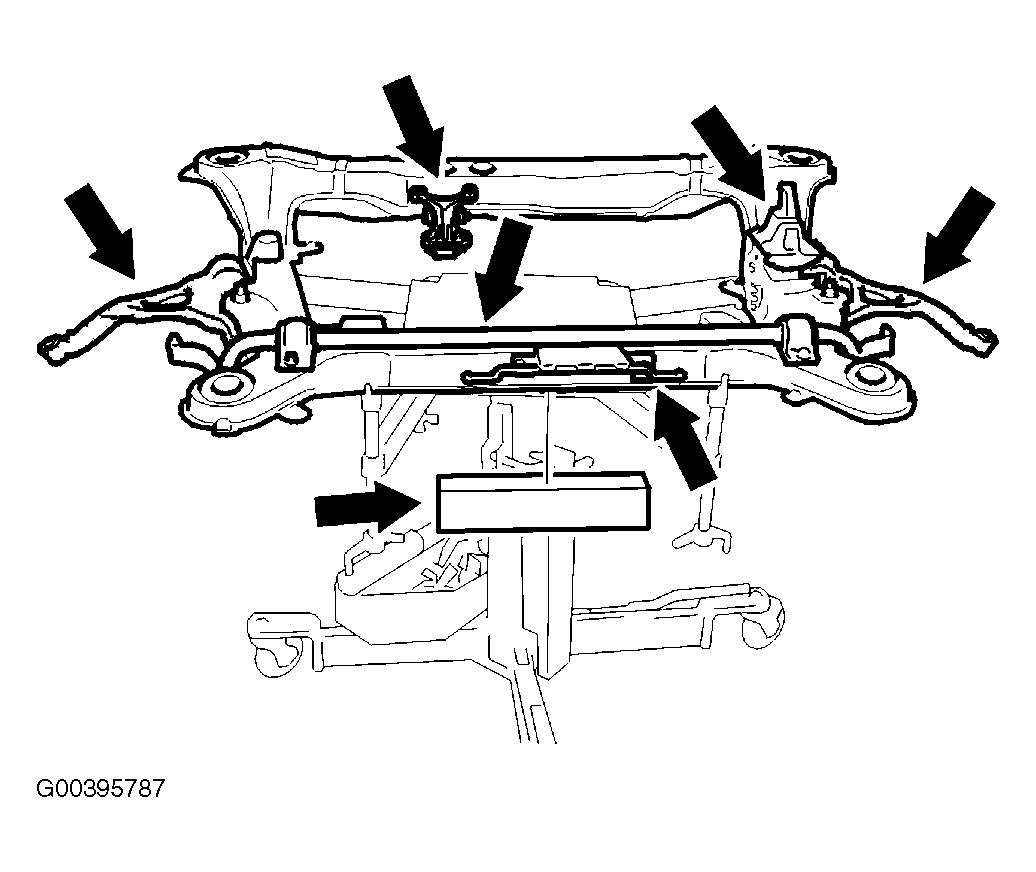

Fig 1: Locating Subframe Components

Courtesy of VOLVO CARS OF NORTH AMERICA.
