Park Neutral Position Sensor
NOTE:
Park Neutral Position (PNP) sensor may also be known as gear shift position sensor.
- Remove the air cleaner housing assembly with the intake pipe. See Fig 1 .

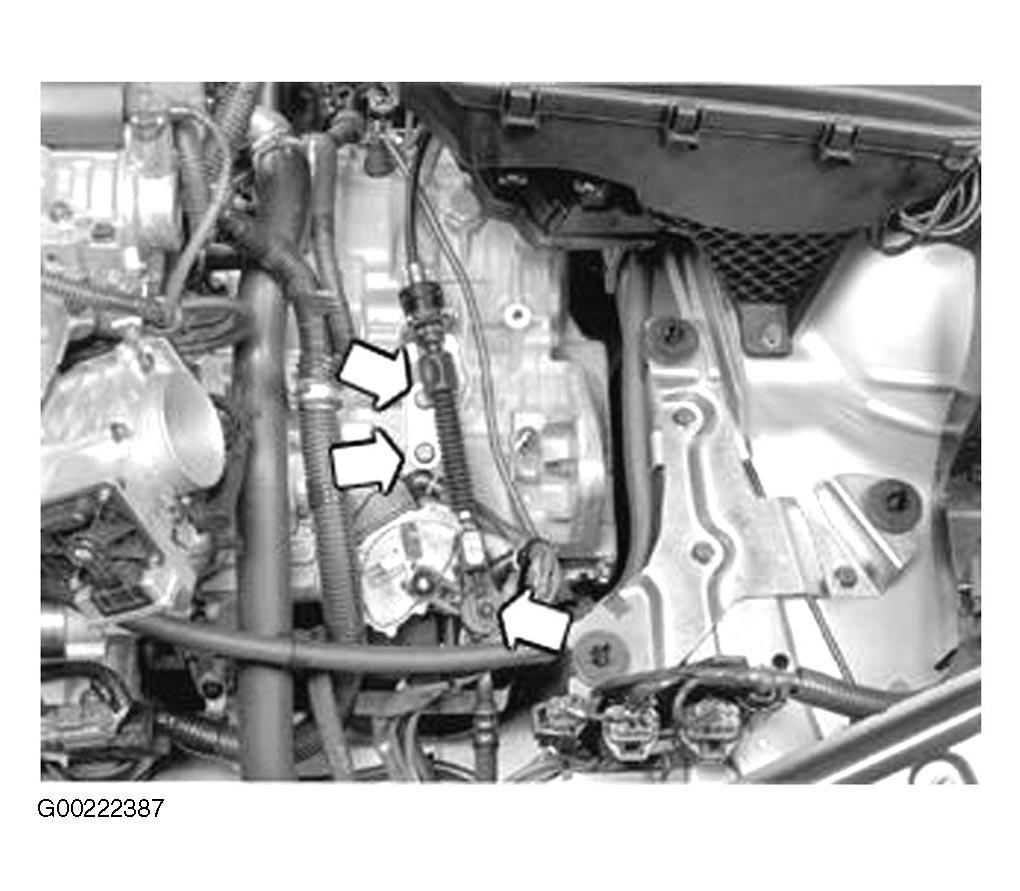

- Remove the screws from the bracket for the gearshift cable. See Fig 2

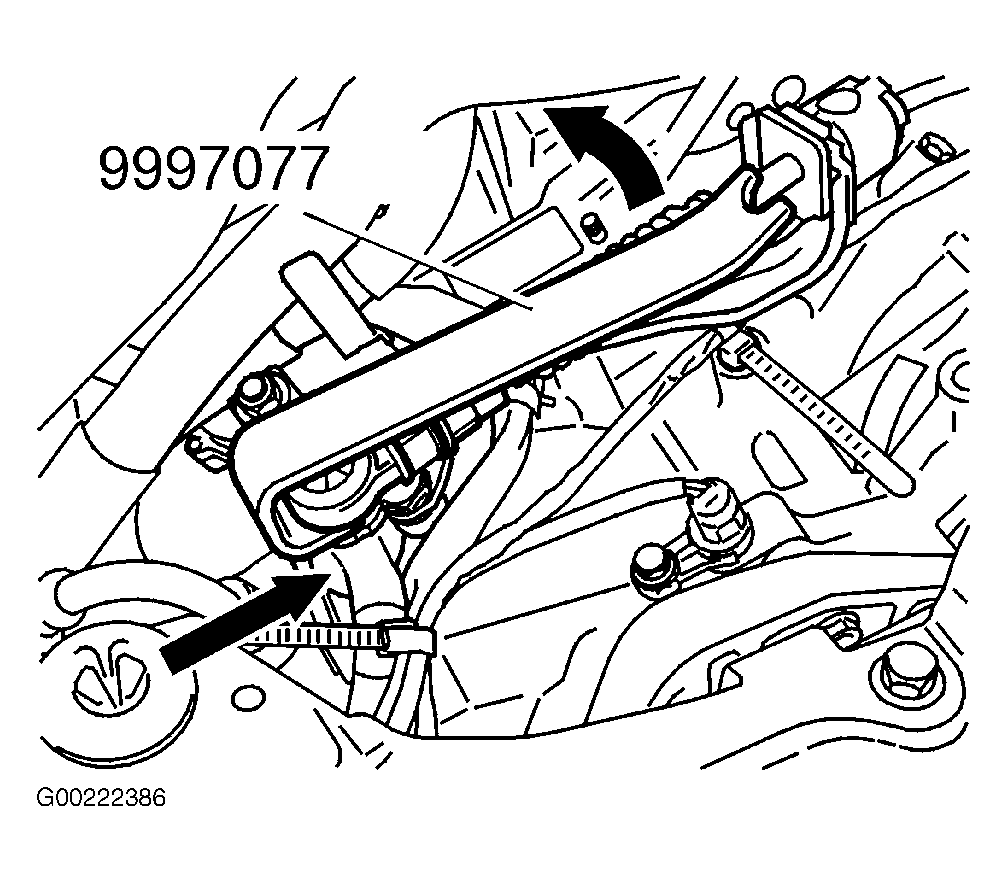

. Detach the cable from the lever using tool (999 7077). See Fig 3
. Remove the cable from the bracket. Move the cable to one side.NOTE: When adjusting the PNP sensor, press the tool down to the flat surfaces below the thread on the shaft.
- Check the setting of the PNP sensor. Remove the lever. Install Adjustment Tool (999 5475) on the gear shift linkage rod. See Fig 4 . Check that the shaft is in the "N" position. The groove on the tool must align with the marking on the PNP sensor. If adjustment is required, go to next step. If PNP sensor is adjusted correctly, go to step 5 .
- Remove the nut for the cable duct. Lift the cable duct away from the screw. Loosen the screws for the PNP sensor. See Fig 5 . Rotate the PNP sensor so that the mark on the switch aligns with the groove on the tool. Tighten the sensor bolts to specification. See TORQUE SPECIFICATIONS .
- Remove the adjustment tool.
- Install the following:
- Lever on the gear shift linkage rod.
- Cable on the lever.
- Bolts for the bracket.
- Install the air cleaner housing assembly with the intake pipe and connector. See Fig 1 .
