Passenger Compartment Fuse

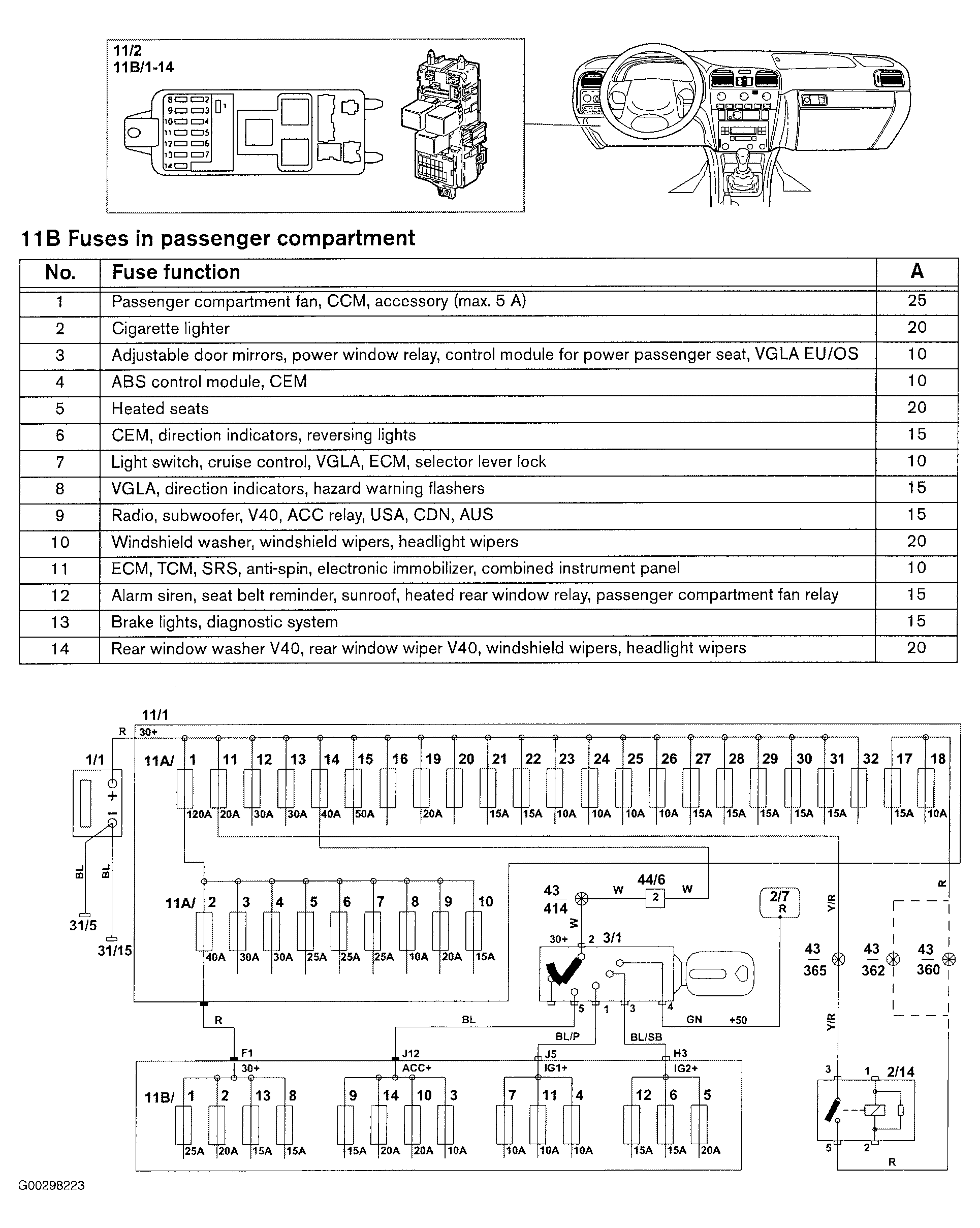

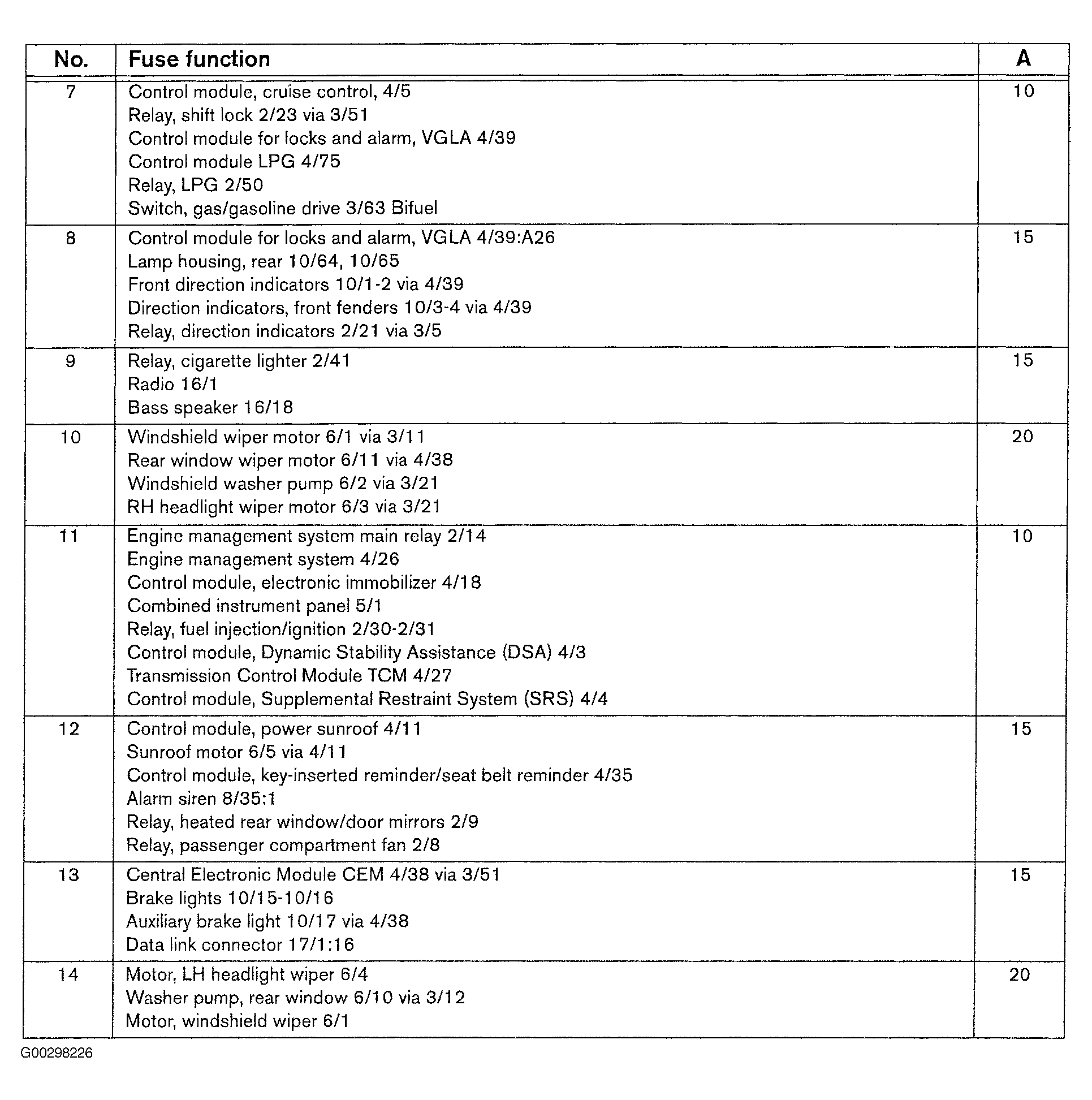

Fig 1: Identifying Passenger Compartment Fuse Box Fuses (2000)

Courtesy of VOLVO CARS OF NORTH AMERICA.

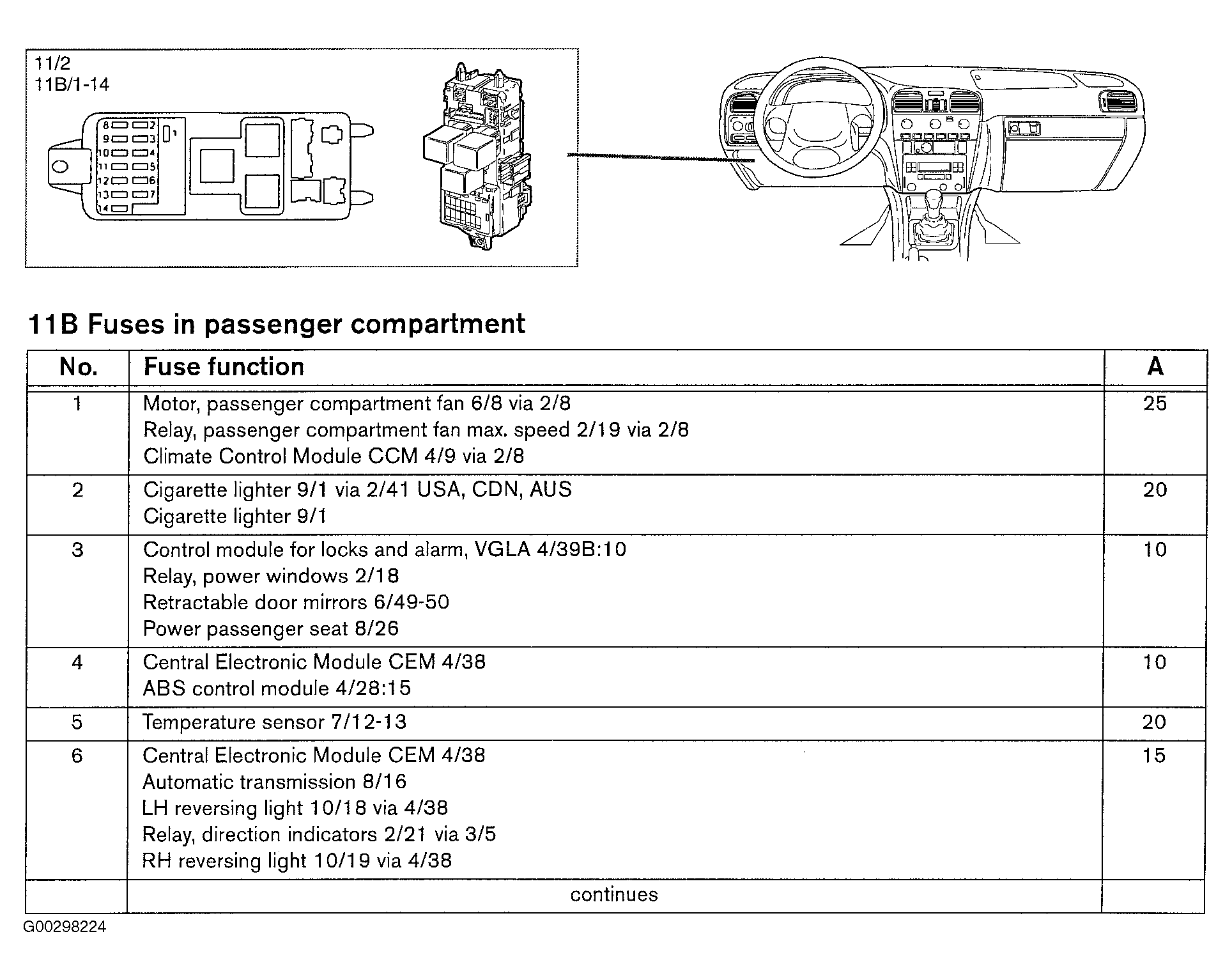

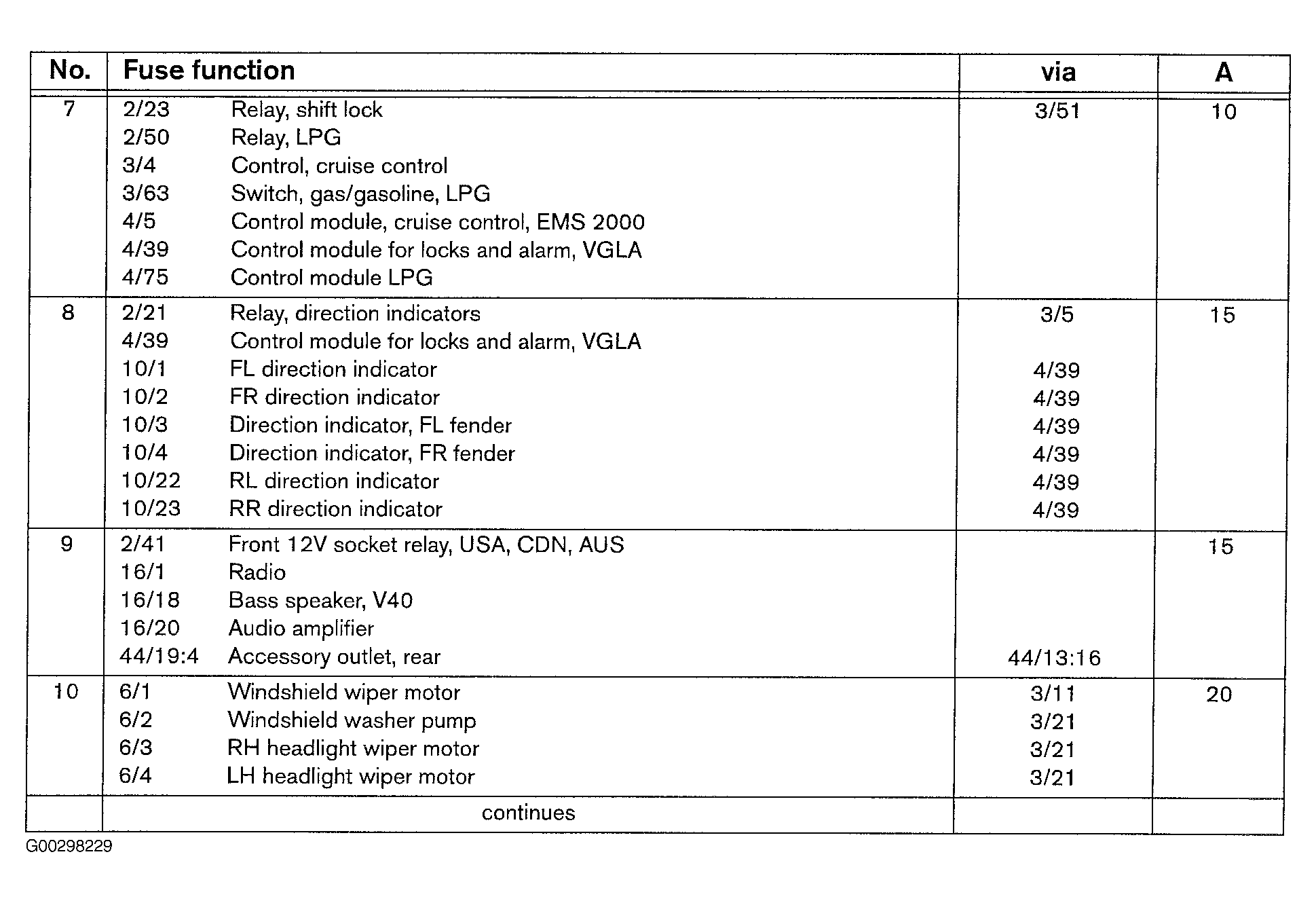

Fig 2: Identifying Passenger Compartment Fuse Box Fuses (2001)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Passenger Compartment Fuse Box Fuses (2002 - 1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Passenger Compartment Fuse Box Fuses (2002 - 2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 5: Identifying Passenger Compartment Fuse Box Fuses (2003 - 1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 6: Identifying Passenger Compartment Fuse Box Fuses (2003 - 2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Identifying Passenger Compartment Fuse Box Fuses (2003 - 3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 8: Identifying Passenger Compartment Fuse Box Fuses (2004 - 1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Identifying Passenger Compartment Fuse Box Fuses (2004 - 2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 10: Identifying Passenger Compartment Fuse Box Fuses (2004 - 3 of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.
