Removing Fuel Pressure Gauge

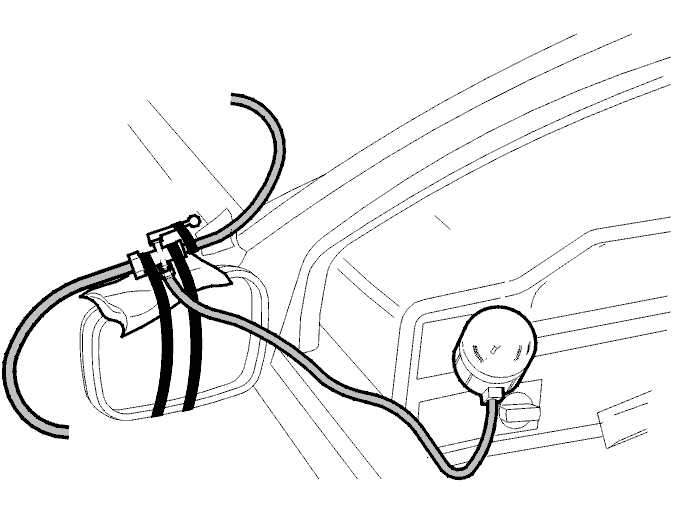

Fig 1: Connecting Draining Unit Hose To Hose Nipple On Door Mirror

Courtesy of VOLVO CARS OF NORTH AMERICA.

Corrective actions:

• Connect the evacuation unit hose to the hose nipple on the door mirror (see black arrow in illustration).
• Start the evacuation unit so there is suction in the hose.

Fig 2: Connecting Fuel Pressure Gauge (T-Valve Cock To Middle Position)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Corrective actions:

• Remove the tie strap locking the cock on the T-nipple.
• Turn the cock to the middle position (position 2) to obtain suction in the hose to the nipple in the fuel manifold on the engine.
