Installing the Spring

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2009 Volvo S60, 2008 Volvo S60, 2007 Volvo S60, 2006 Volvo S60, and 2005 Volvo S60. However, it is still accessible from the selected car via links, so may be relevant.

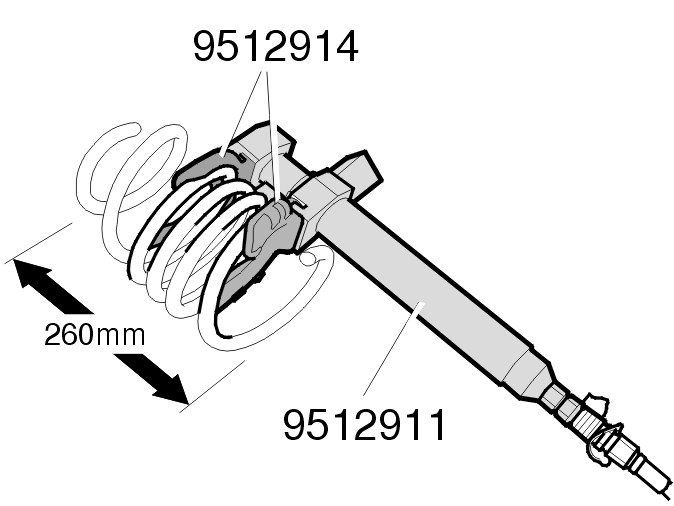

Fig 1: Compressing New Spring To A Length Of Approximately 260 mm Using Hydraulic Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Compress the new spring to a length of approximately 260 mm. Use hydraulic tool 9512911 together with plates 9512914 .

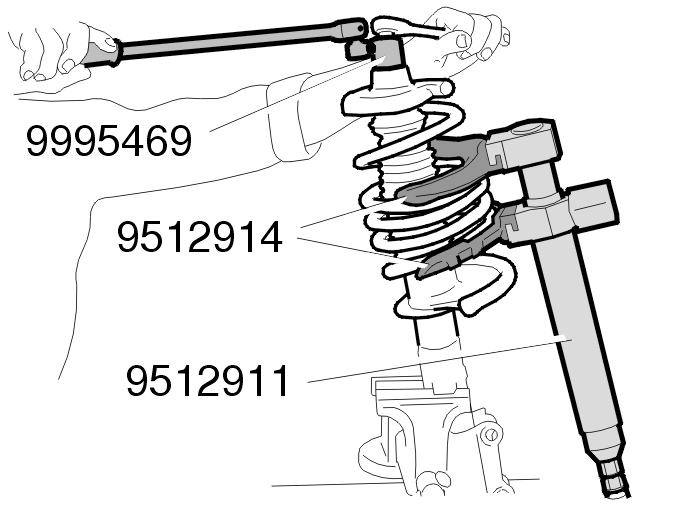

Fig 2: Removing/Installing Fixing Nut On Shock Absorber Using Socket And A Torx-Wrench As A Counter Hold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the bump stop with the boot
the spring
the spring seat.

Install the fixing nut. Tighten. See Tightening Torque . Use socket 9995469 and a 3/8" Torx-wrench as a counterhold.
