Installing the Spring Strut

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2009 Volvo S60, 2008 Volvo S60, 2007 Volvo S60, 2006 Volvo S60, and 2005 Volvo S60. However, it is still accessible from the selected car via links, so may be relevant.

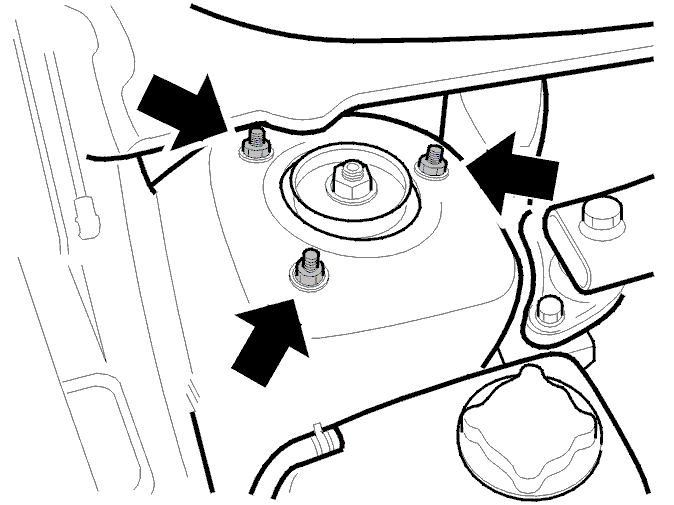

Fig 1: Nuts Holding Spring Strut Mounting In Bodywork

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the spring strut in the bodywork using new nuts. Tighten. See Tightening torque .

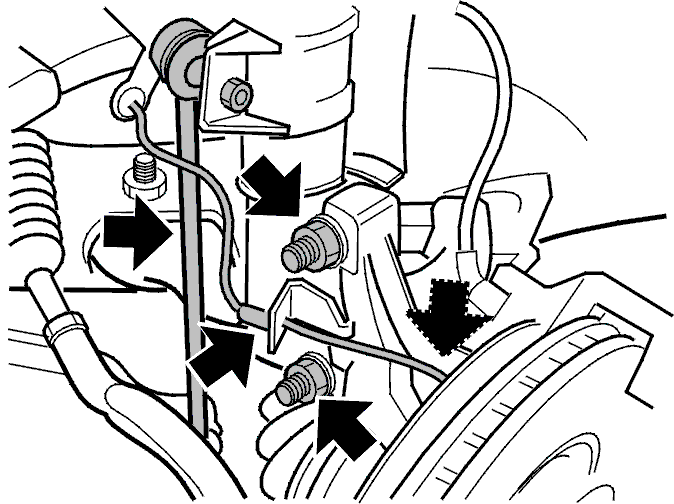

Fig 2: Installing Spring Strut On Wheel Spindle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the spring strut on the wheel spindle. Use new screws and new nuts
Adjust the spring strut and wheel spindle to the measured value.

NOTE: Ensure that measurement is performed at same points as when removing.

Fig 3: Spring Strut To Wheel Spindle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten, see Tightening Torque . Use protractor 9512050 .

Install:

the anti-roll bar link to the spring strut. Use a new nut. Tighten. See Tightening Torque .
Counterhold using a Torx wrench to prevent damage to the boot.
The ABS sensor cable in the bracket
the wheel. See Installing Wheels .

Check and adjust the headlamps in accordance with Headlamps, Aligning .
