Installing The Control Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2009 Volvo S60, 2008 Volvo S60, 2007 Volvo S60, 2006 Volvo S60, and 2005 Volvo S60. However, it is still accessible from the selected car via links, so may be relevant.

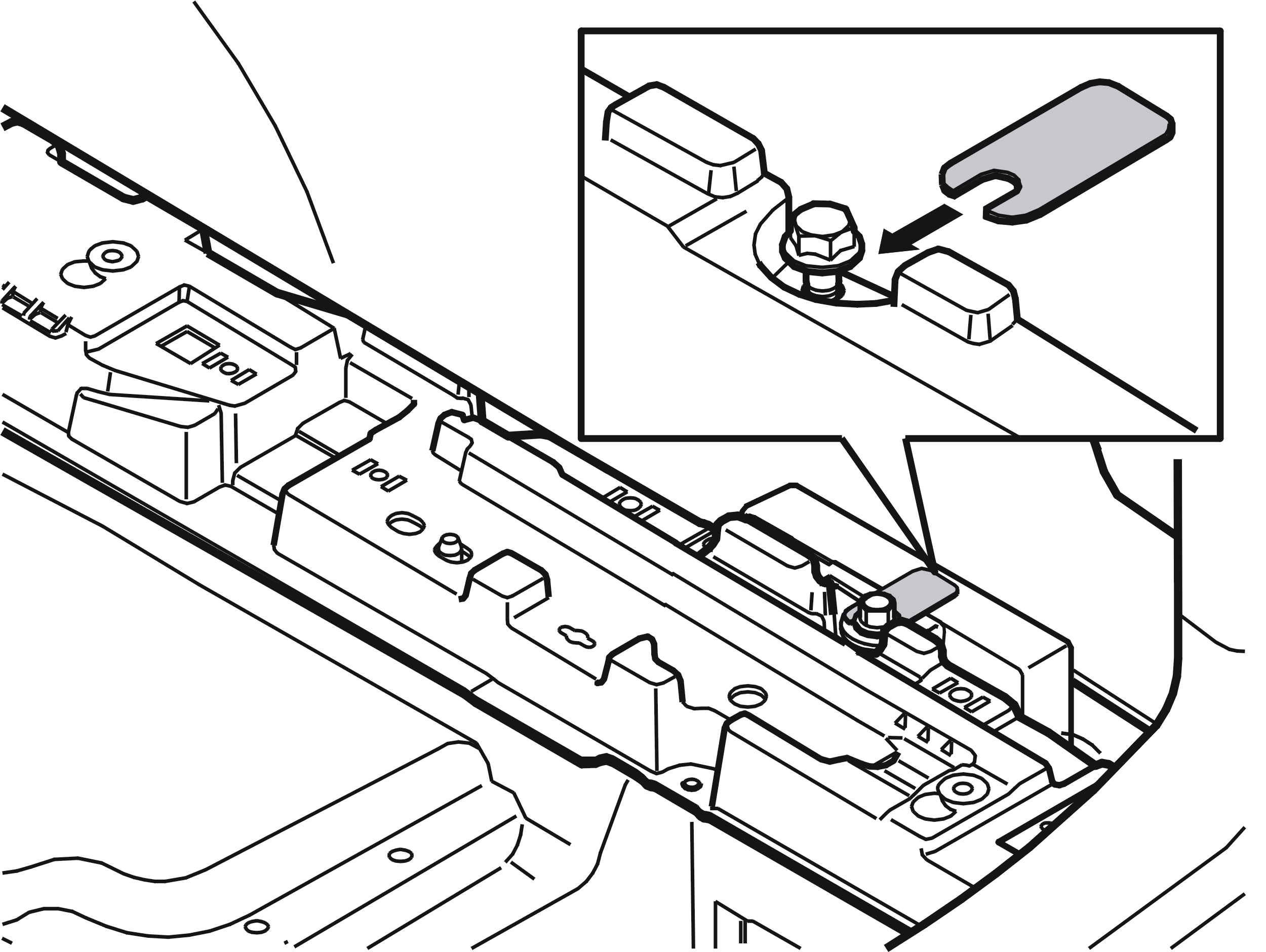

Fig 1: Installing Accessory Control Module Lock Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the wiring to the outside of the control module.

Place the control module in the bracket and press it down.

Install the lock plate. Tighten the screw. Tighten to 10 Nm .

Reinstall the side panel.

After consultation with the customer, new software that corresponds to the car can be downloaded. Software for the accessory electronic module must be downloaded first. Software for the connected accessories must then be downloaded.

Check that no diagnostic trouble codes (DTCs) have been stored during the repair.
