Removal Of Steering Column Covers

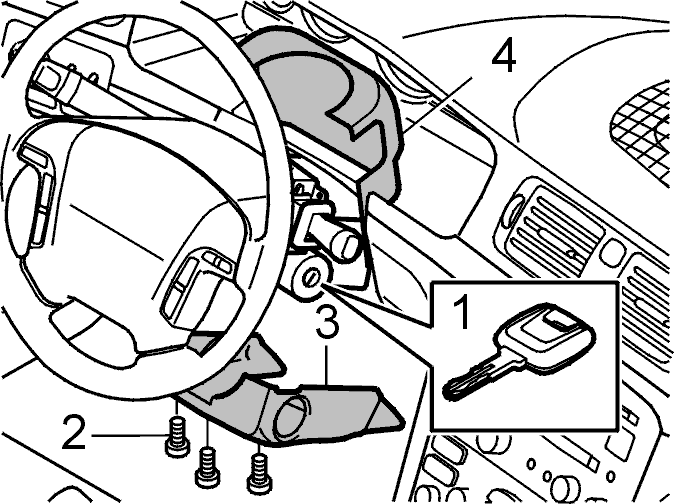

Fig 1: Steering Column Covers
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the ignition key (1).
Remove the three screws (2).
Press in the snap-in fixings and remove the lower steering column cover (3).
Turn up the upper steering column cover (4).
