Wheel alignment, checking/adjusting
>>
Checking the camber angle, front
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Checking the camber angle, front

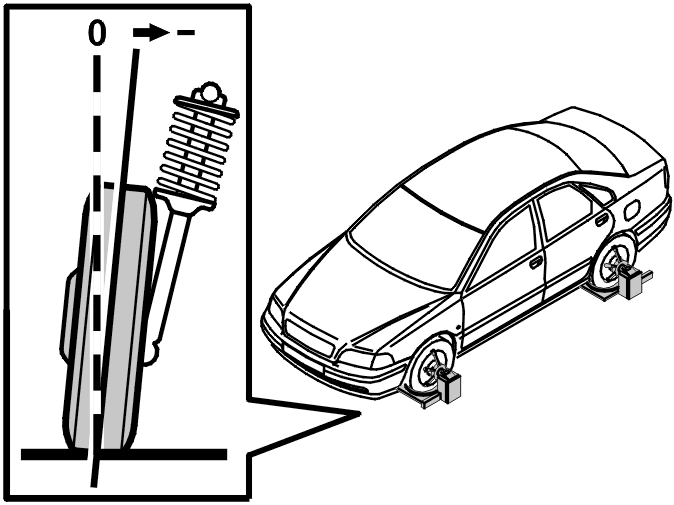

Fig 1: Checking Camber Angle, Front
Courtesy of VOLVO CARS OF NORTH AMERICA.
Check the camber angle on both sides.
For the correct values, see
Wheel camber, specifications
.
