Installing VVT-unit

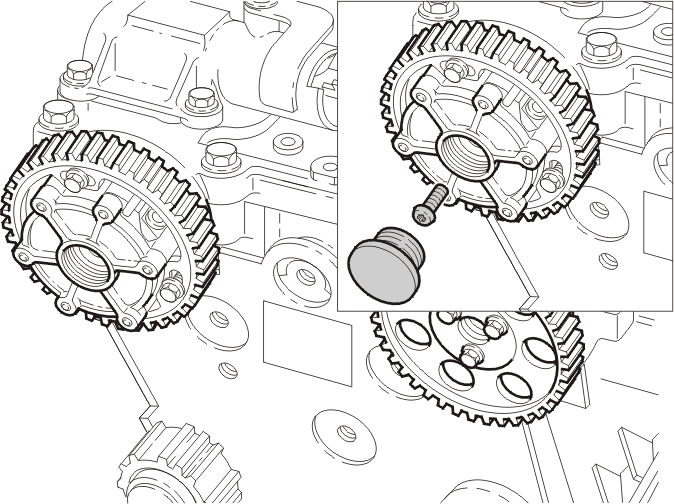

Fig 1: Removing/Installing Plug And Center Screw At Variable Valve Timing Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the timing gear pulley using the center screw on the camshaft.

Ensure that the markings on the timing gear pulleys/upper timing cover correspond. Do not  tighten.
