VVT-unit, replacing/adjusting: Check

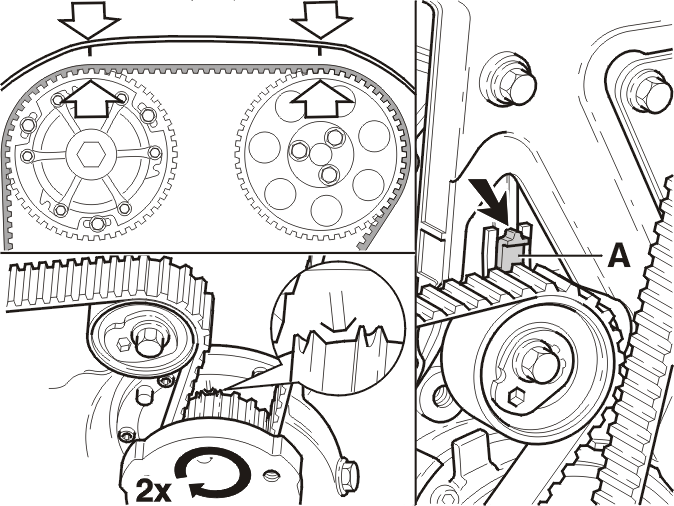

Fig 1: Checking Markings On Crankshaft And Camshaft Pulley Correspond

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the belt to check that the indicator on the tensioner moves easily.
Position the upper timing cover.
Turn the crankshaft two turns. Check that the markings on the crankshaft and camshaft pulley correspond
NOTE: Check that the indicator on the belt tensioner is within the marked area.
Remove the upper timing cover.
