Installing the C-post panel

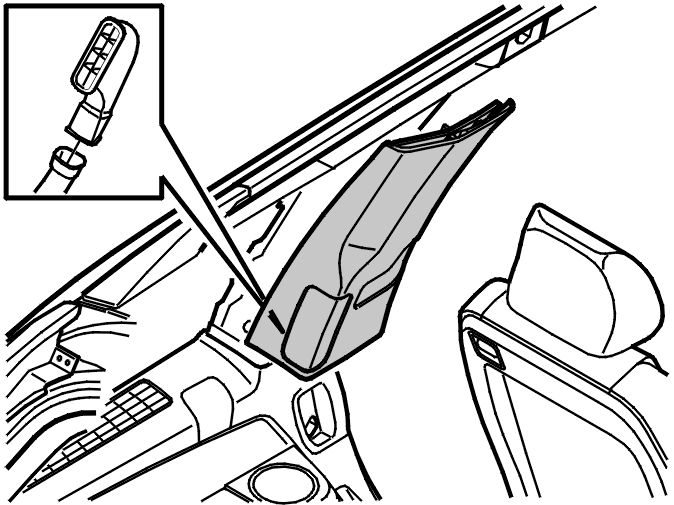

Fig 1: Installing C-Post Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Thread the seat belt through the panel.

Install:

• the end mounting. See End mounting, replacing
• the seat belt cover.

Align the panel with the air duct.

Press the panel into place.

Install the weatherstrip.
