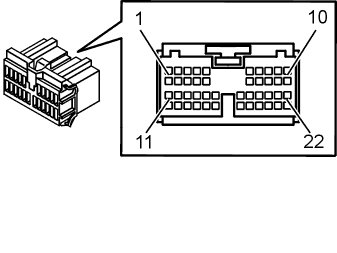

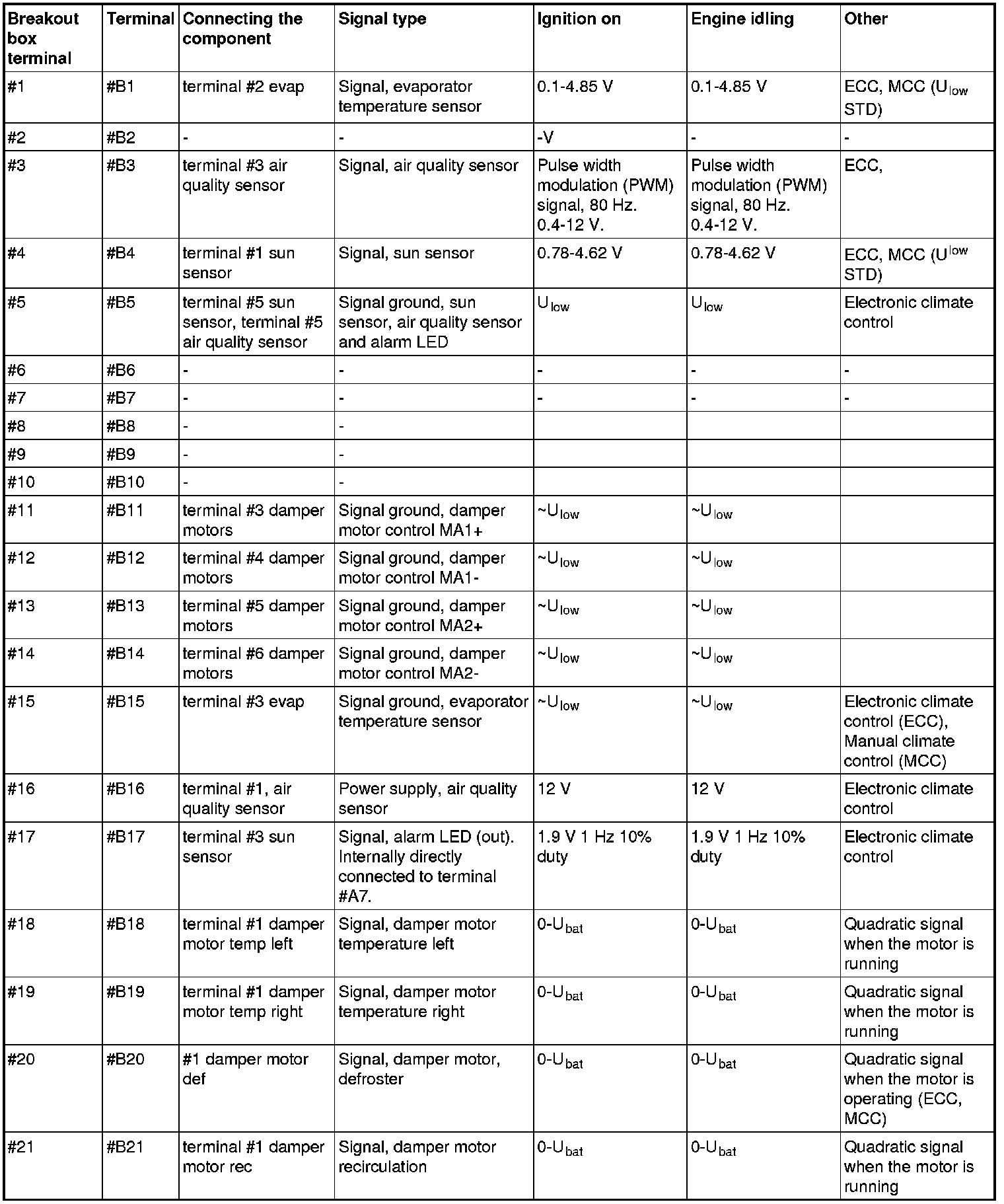

Signal Description, Climate Control Module (CCM), Connector B






Signal description, climate control module (CCM), Connector B

General
There may be several connections and connectors between the control module and components. See the relevant section in the wiring diagram for further information about these.

Note! It is important to connect the breakout box and check the ground terminals before taking readings.
