Dimensions

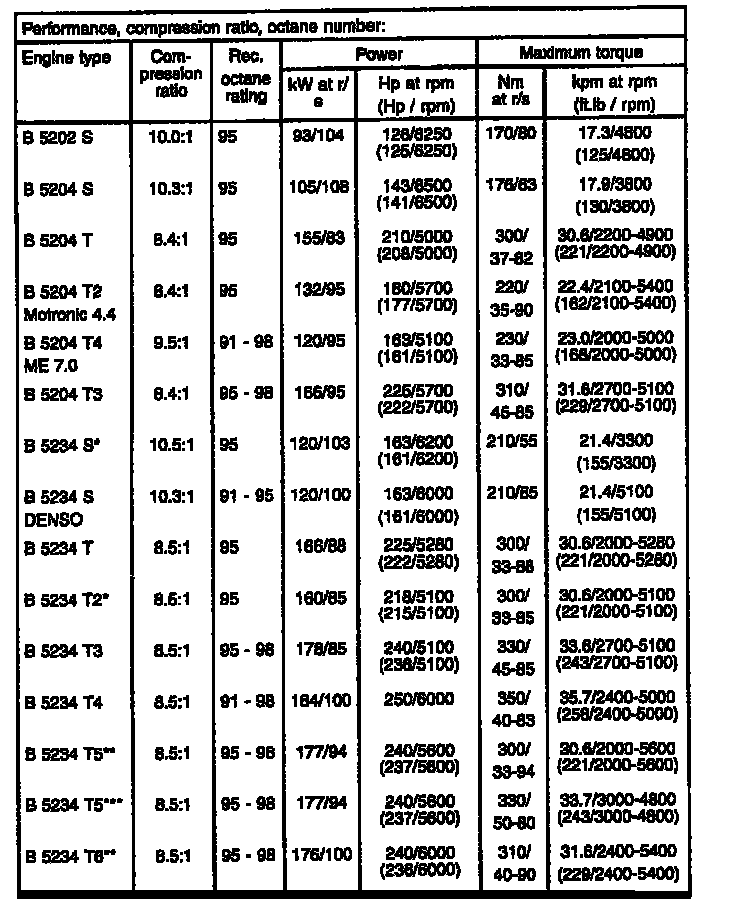

S70/V70 Engine Mechanical Data:

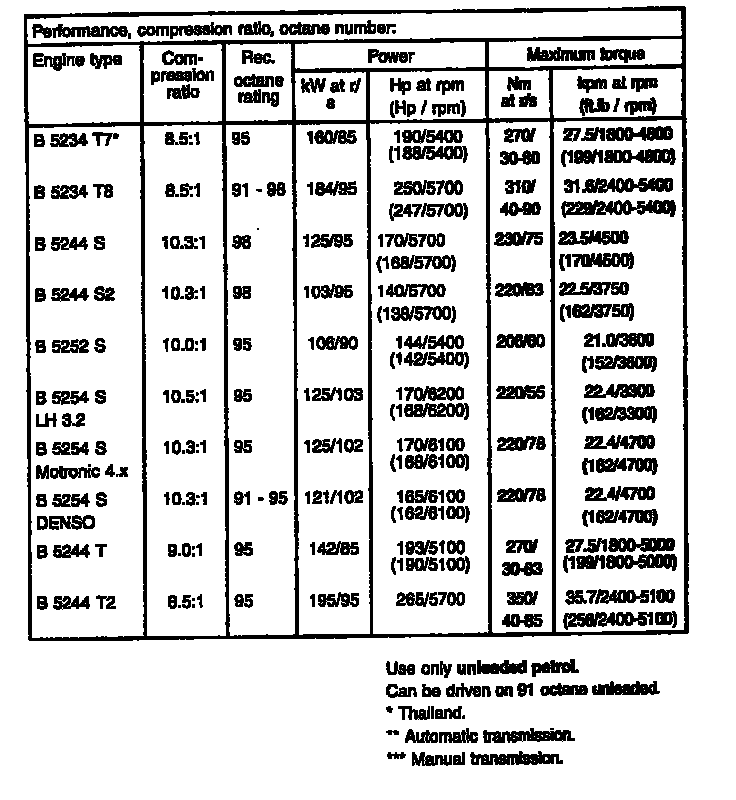

S70/V70 Engine Mechanical Cont.:





S70/V70 Engine Mechanical Cont.:





S70/V70 Engine Mechanical Cont.:





S70/V70 Engine Mechanical Cont.:




S70/V70 Engine Mechanical Cont.:
