Installing the right engine mounting

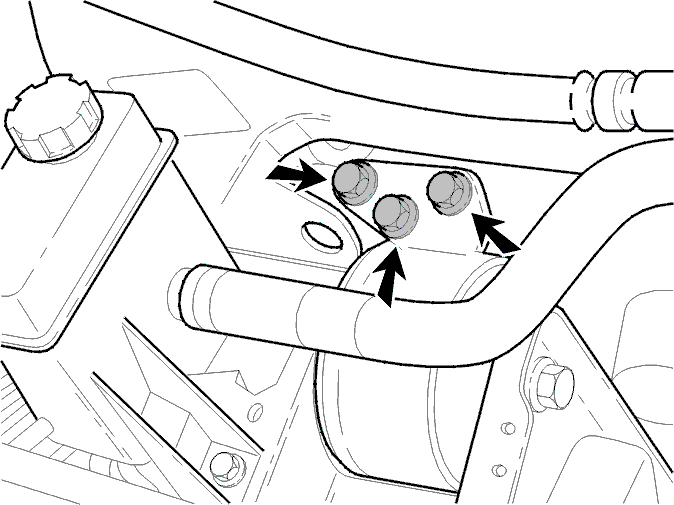

Fig 1: Removing Engine Mounting On Timing Gear Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

Screw the engine mounting onto the engine. Tighten to 67 Nm  .

Install the engine mounting screw and nut in the bodywork bracket. Tighten by hand.
