Home >> Volvo >> 1993 >> 850 Automatic >> Repair and Diagnosis >> Brakes >> Anti-Lock Brake System & Traction Control System >> Wiring Diagram
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Anti-Lock Brake System & Traction Control System: Wiring Diagram

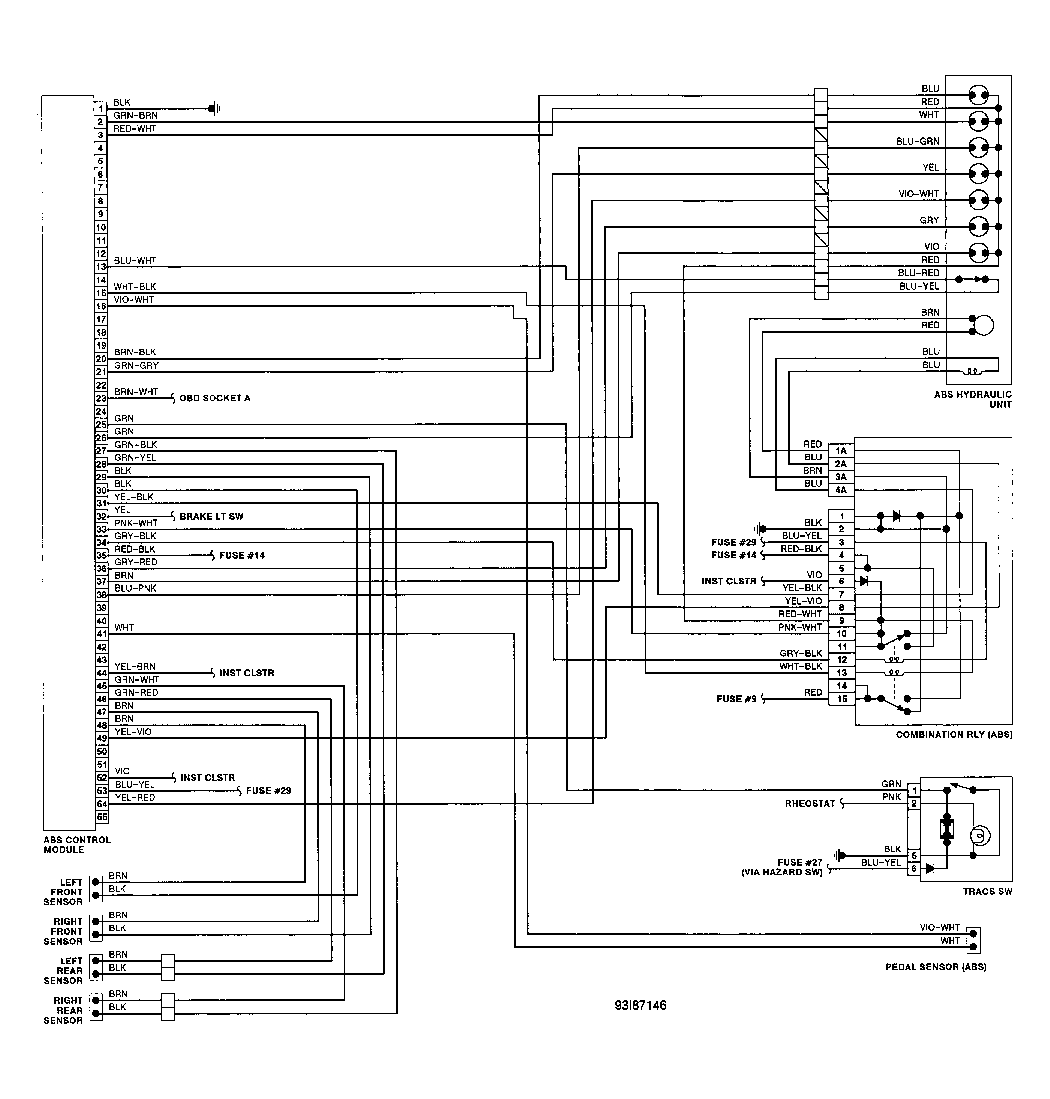

Fig 1: Anti-Lock Brake & Traction Control System Wiring Diagram
G93I87146
