Abs Fuse Panel Identification

NOTE: On vehicles equipped with Anti-Lock Brakes (ABS), the system is protected by (2) additional fuses. (1) 10 Amp fuse located in the trunk compartment on the right side, and (1) 80 Amp fuse located on the left inner fender. See Fig 1 .

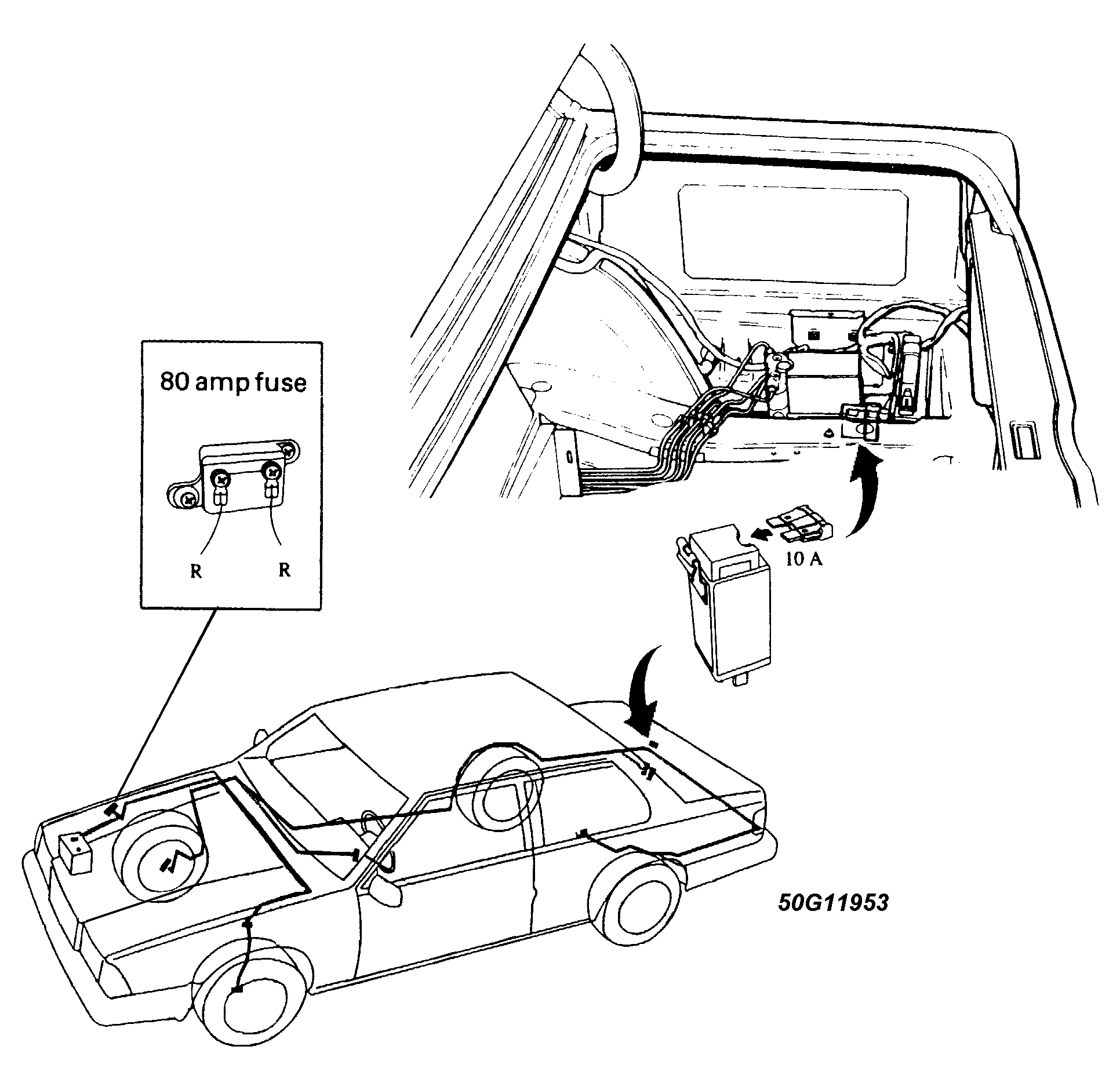

Fig 1: ABS Fuse Locations (1987)

Courtesy of VOLVO CARS OF NORTH AMERICA.
