Wiring Diagrams

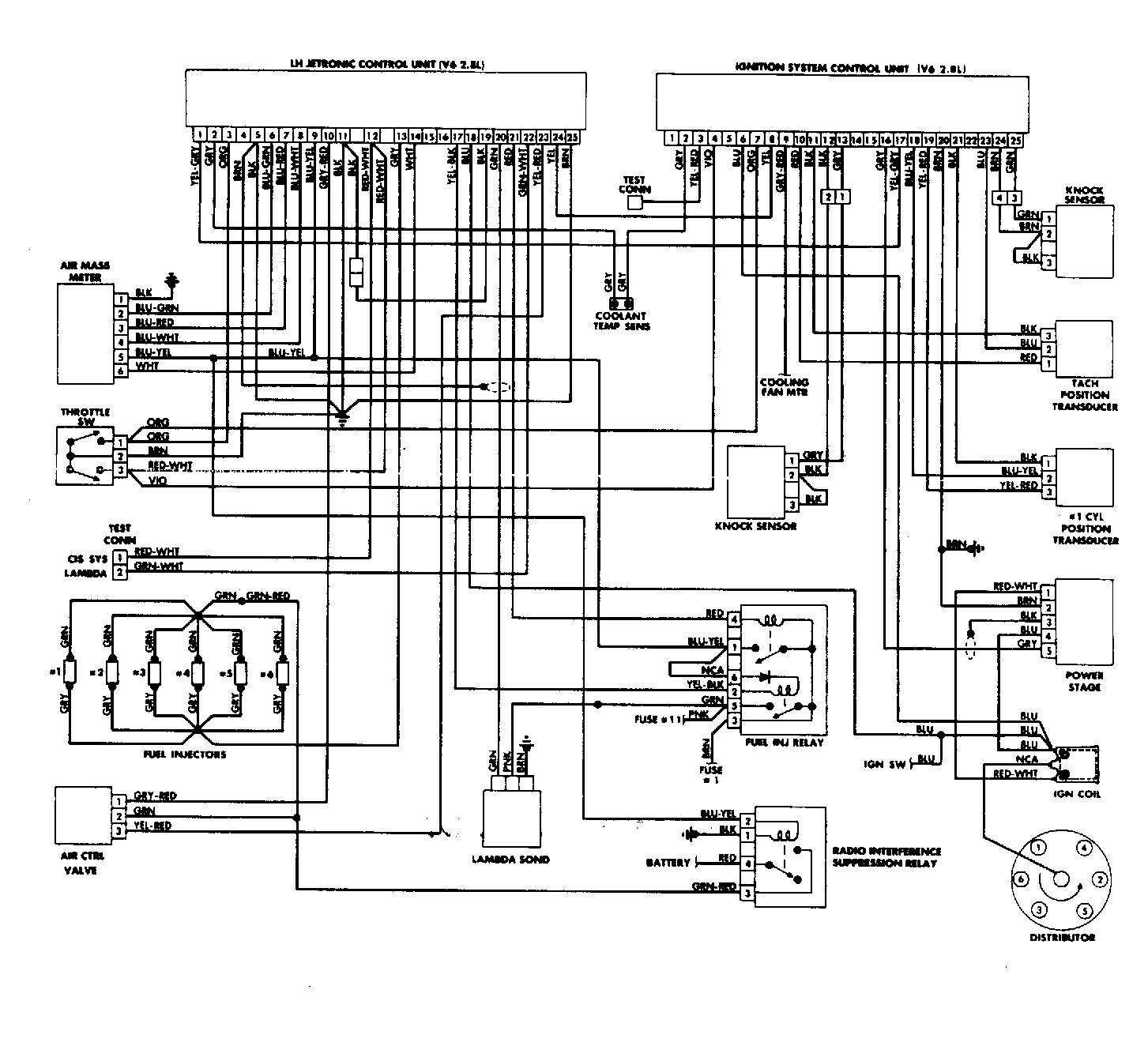

Fig 1: LH-Jetronic Wiring Diagram (740 & 760 - 6-Cylinder)
G62340

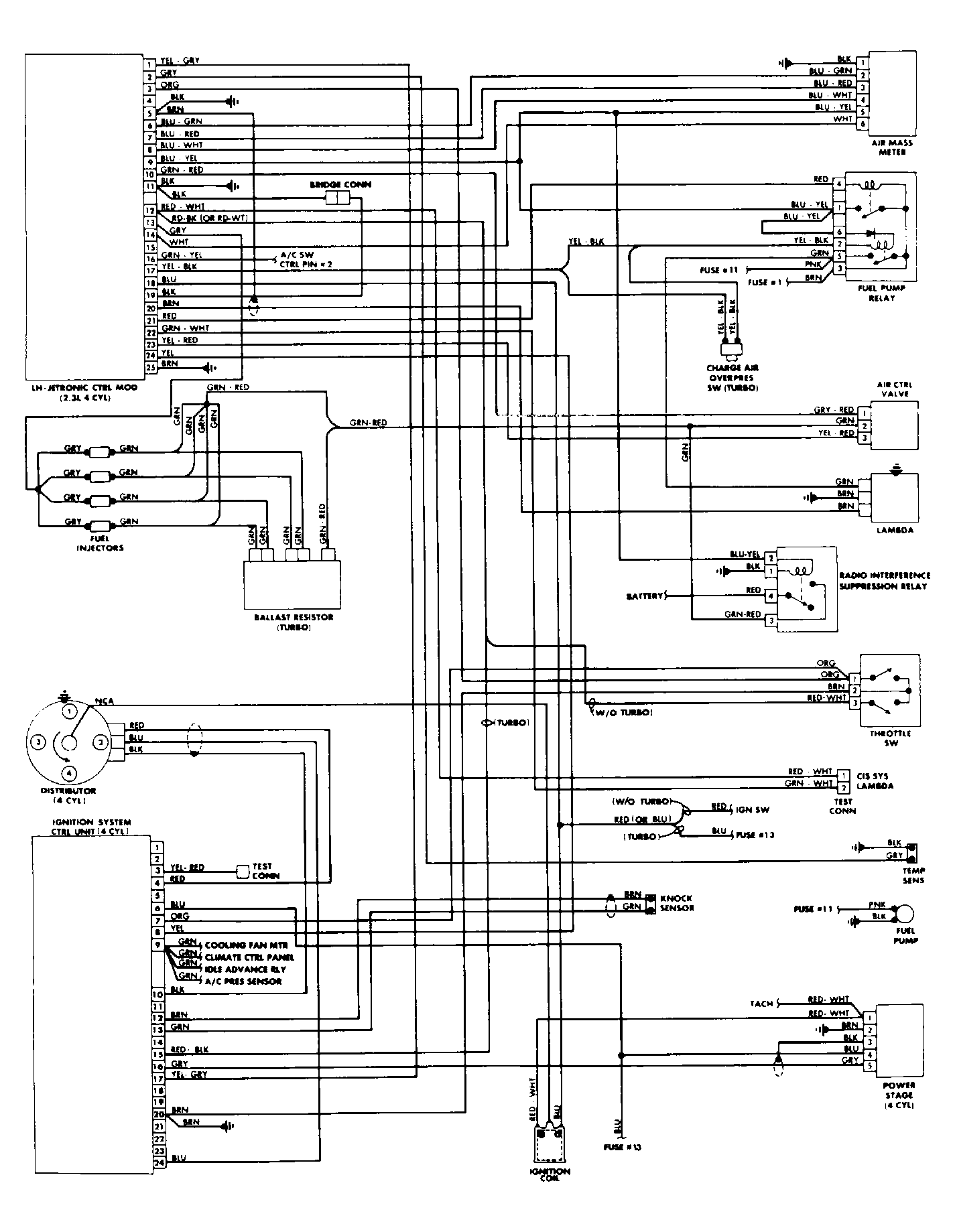

Fig 2: LH-Jetronic Wiring Diagram (740 & 760 - 4-Cylinder)
G62339
