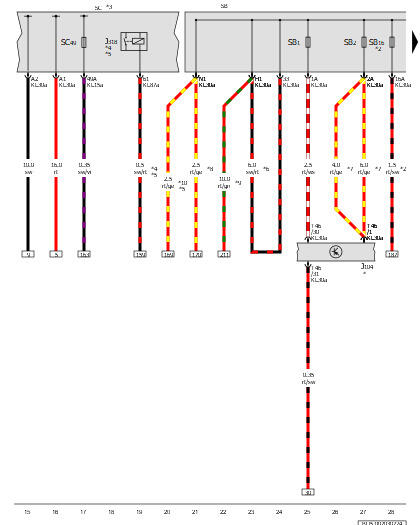

Abs Control Module, Fuse Panel B, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J104

ABS Control Module

J318

Vacuum Pump Relay

SB

Fuse Panel B

SB1

Fuse 1 (On Fuse Panel B)

SB2

Fuse 2 (On Fuse Panel B)

SB16

Fuse 16 (On Fuse Panel B)

SC

Fuse Panel C

SC49

Fuse 49 (On Fuse Panel C)

T46

46-Pin Connector, Black

*

Refer to Applicable Brake System Wiring Diagram

*2

For Vehicles with 2.0L Gasoline Engine

*3

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*4

For Vehicles with a 1.4L Engine

*5

For Vehicles with Automatic Transmission

*6

For Vehicles with Front Differential Lock

*7

Depending on Equipment

*8

For Vehicles with Automatic Transmission (DSG)

*9

For Vehicles with Auxiliary Heater

*10

For Vehicles with 1.5L Gasoline Engine
