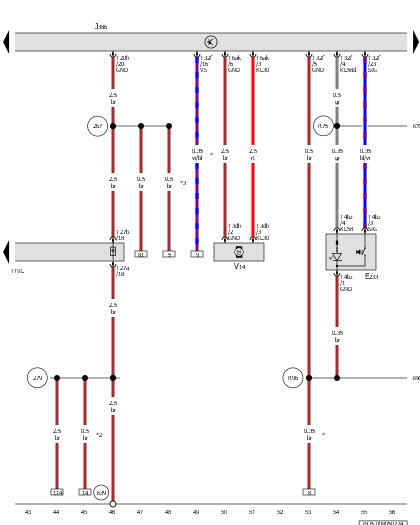

Rear Lid Remote Release Button, Driver Door Control Module, Left Window Regulator Motor
E233
Rear Lid Remote Release Button
J386
Driver Door Control Module
T3dh
3-Pin Connector, Blue
T4bz
4-Pin Connector, Black
T6ak
6-Pin Connector, Black
T20h
20-Pin Connector, White
T27a
27-Pin Connector, Black
T27b
27-Pin Connector, Black
T32f
32-Pin Connector, Blue
TTVL
Left Front Door Coupling Point
V14
Left Window Regulator Motor
267
Ground Connection 2 (in Driver Door Wiring Harness)
279
Ground Connection 5 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
R75
Connection 58d (in Door Control Module Wiring Harness) 1
R96
Connection 3 (in Driver Door Wiring Harness)
*
Depending on Equipment
*2
For Vehicles with Access/Start Authorization System
*3
For Vehicles with Ambient Lighting
