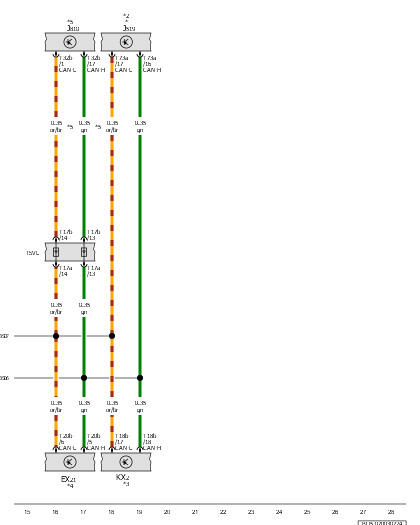

Heater And A/C Controls, Vehicle Electrical System Control Module, Driver Seat Adjustment Control Module, Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX21

Heater and A/C Controls

J519

Vehicle Electrical System Control Module

J810

Driver Seat Adjustment Control Module

KX2

Instrument Cluster

T17a

17-Pin Connector, Red

T17b

17-Pin Connector, Red

T18b

18-Pin Connector, Black

T20b

20-Pin Connector, Black

T32b

32-Pin Connector, Black

T73a

73-Pin Connector, Black

TSVL

Left Front Seat Coupling Station

B506

Comfort CAN Bus High Connection (in Interior Wiring Harness)

B507

Comfort CAN Bus Low Connection (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

Refer to Applicable Wiring Diagram for Instrument Cluster

*4

Refer to the Applicable Climatronic Wiring Diagram

*5

Driver Memory Seat
