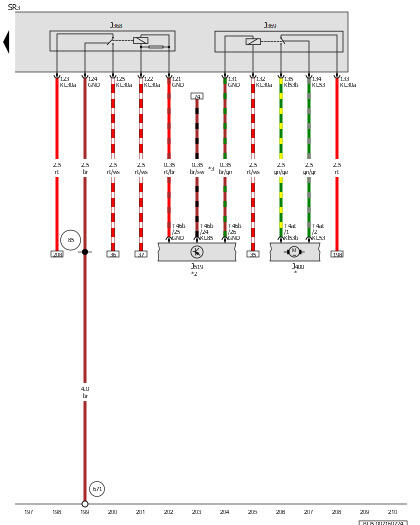

Wiper Motor Control Module, Vehicle Electrical System Control Module, Relay And Fuse Panel 3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J368

Wiper Motor Relay 1

J369

Wiper Motor Relay 2

J400

Wiper Motor Control Module

J519

Vehicle Electrical System Control Module

SR3

Relay and Fuse Panel 3

T4at

4-Pin Connector, Black

T46b

46-Pin Connector, Black

85

Ground Connection 1 (in Engine/Motor Compartment Wiring Harness)

671

Ground Connection 1 on Left Front Longitudinal Member

*

Refer to the Applicable Wiring Diagram for the Windshield Wiper/Washer System

*2

Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior

*3

For Vehicles with Dual Tone Horn
