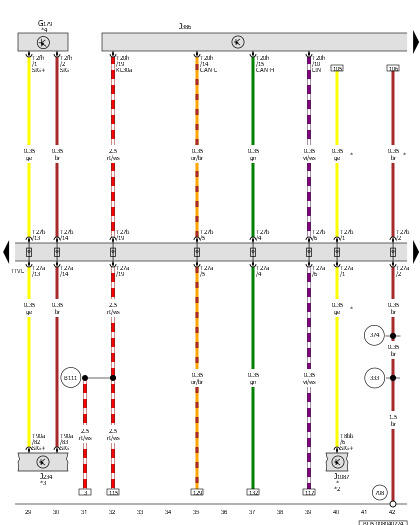

Driver Thorax Airbag Crash Sensor, Airbag Control Module, Driver Door Control Module, Blind Spot Detection Control Module 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G179

Driver Thorax Airbag Crash Sensor

J234

Airbag Control Module

J386

Driver Door Control Module

J1087

Blind Spot Detection Control Module 2

T2fh

2-Pin Connector, Yellow

T8bb

8-Pin Connector, Black

T20h

20-Pin Connector, White

T27a

27-Pin Connector, Black

T27b

27-Pin Connector, Black

T90a

90-Pin Connector, Yellow

TTVL

Left Front Door Coupling Point

333

Ground Connection 5 (in Rear Wiring Harness)

374

Ground Connection 9 (in Main Wiring Harness)

708

Ground Connection 2 on Right Rear Chassis Side Member

B111

Positive Connection 1 (30a) (in Interior Wiring Harness)

*

For Vehicles with Blind Spot Detection

*2

Refer to Applicable Lane Change Assistance Wiring Diagram

*3

Refer to Applicable Airbag Wiring Diagram

*4

Depending on Equipment
