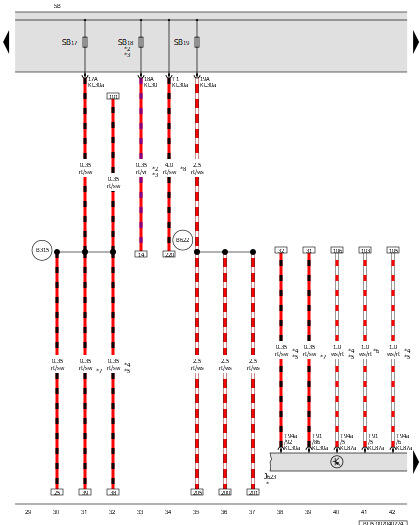

Engine/Motor Control Module, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module

SB

Fuse Panel B

SB17

Fuse 17 (On Fuse Panel B)

SB18

Fuse 18 (On Fuse Panel B)

SB19

Fuse 19 (On Fuse Panel B)

T91

91-Pin Connector, Black

T94a

94-Pin Connector, Black

B315

Positive Connection 1 (30a) (in Main Wiring Harness)

B622

Windshield Wiper Connection (in Main Wiring Harness)

*

Refer to Applicable Engine Wiring Diagram

*2

For Vehicles Without Parking Heater

*3

For Vehicles with Start/Stop System

*4

For Vehicles with a 1.4L Engine

*5

For Vehicles with 1.5L Gasoline Engine

*6

For Vehicles with 2.0L Gasoline Engine

*7

For Vehicles with a 2.0L Engine

*8

For Vehicles with Auxiliary Heater

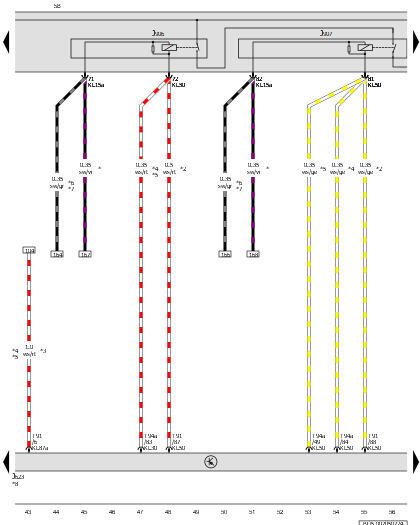

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module

J906

Starter Relay 1

J907

Starter Relay 2

SB

Fuse Panel B

T91

91-Pin Connector, Black

T94a

94-Pin Connector, Black

*

For Vehicles Without Engine Remote Start

*2

For Vehicles with 2.0L Gasoline Engine

*3

For Vehicles with a 2.0L Engine

*4

For Vehicles with a 1.4L Engine

*5

For Vehicles with 1.5L Gasoline Engine

*6

For Vehicles with Engine Remote Start

*7

For Vehicles with Engine Remote Start Setup

*8

Refer to Applicable Engine Wiring Diagram
