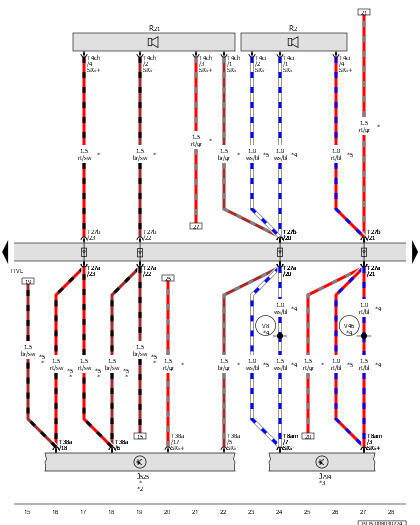

Digital Sound System Control Module, Information Electronics Control Module 1, Left Front Speaker, Left Front Bass Speaker

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

R2

Left Front Speaker

R21

Left Front Bass Speaker

T4ch

4-Pin Connector, Black

T4ci

4-Pin Connector, Black

T8am

8-Pin Connector, Brown

T27a

27-Pin Connector, Black

T27b

27-Pin Connector, Black

T38a

38-Pin Connector, Black

TTVL

Left Front Door Coupling Point

V8

Left Front Speaker Negative Connection (in Speaker Wiring Harness)

V46

Left Front Speaker Connection (in Speaker Wiring Harness)

*

For Vehicles with Sound System

*2

Refer to Applicable Sound System Wiring Diagram

*3

Refer to the Applicable Multimedia System Wiring Diagram

*4

For Vehicles with 6 Speakers

*5

Depending on Equipment
