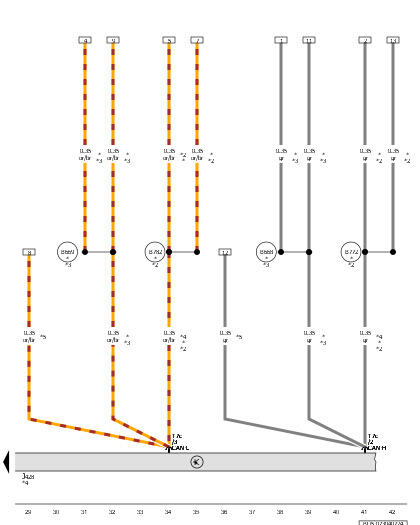

Control Module For Adaptive Cruise Control

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J428

Control Module for Adaptive Cruise Control

T7c

7-Pin Connector, Black

B668

CAN Bus Extended High Connection 2 (in Main Wiring Harness)

B669

CAN Bus Extended Low Connection 2 (in Main Wiring Harness)

B772

CAN Bus Extended High Connection 4 (in Main Wiring Harness)

B782

CAN Bus Extended Low Connection 4 (in Main Wiring Harness)

*

For Vehicles with Mobile Online Services

*2

For Vehicles with Automatic Transmission

*3

For Vehicles with a Manual Transmission

*4

For Vehicles with Control Module for Adaptive Cruise Control

*5

For Vehicles without Mobile Online Services
